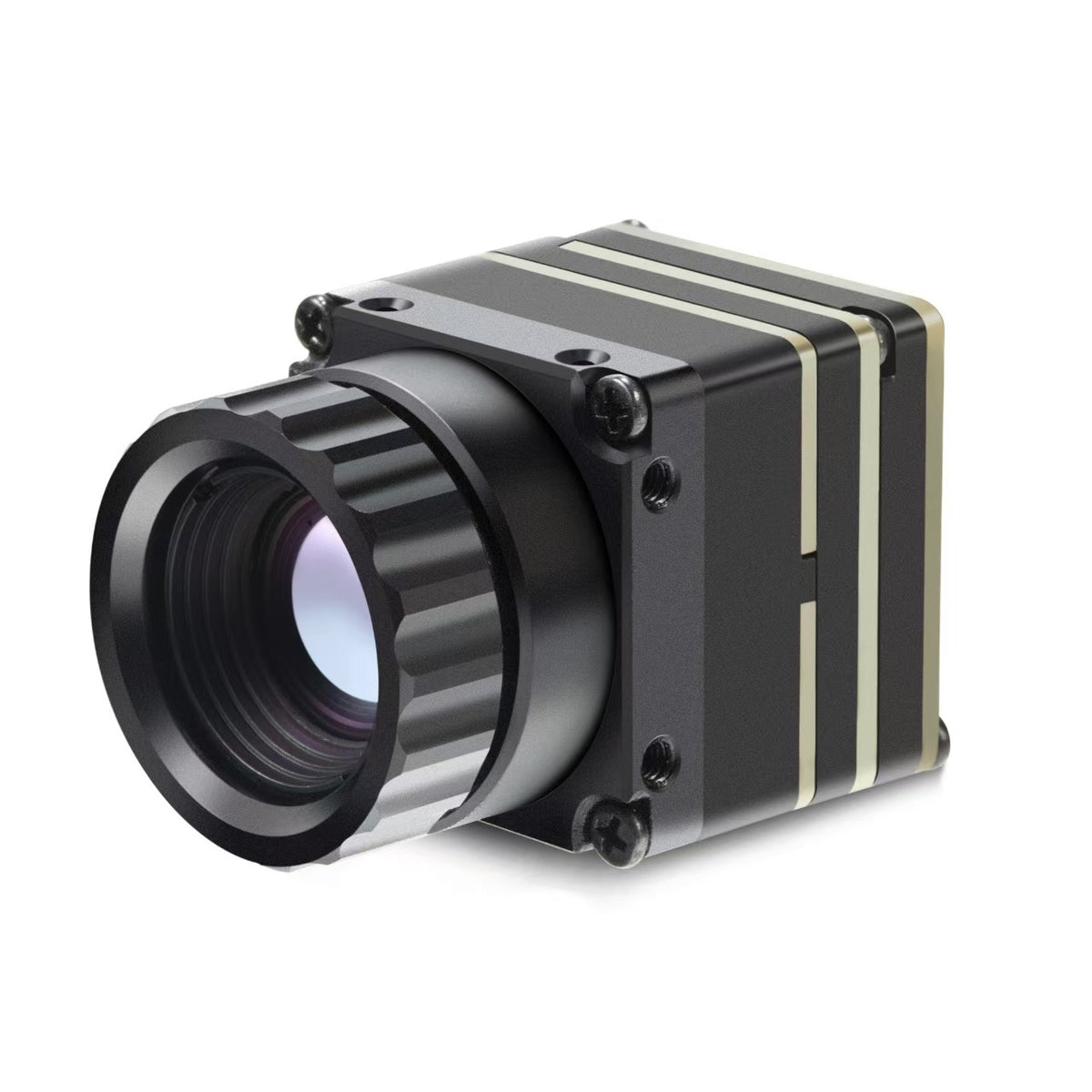

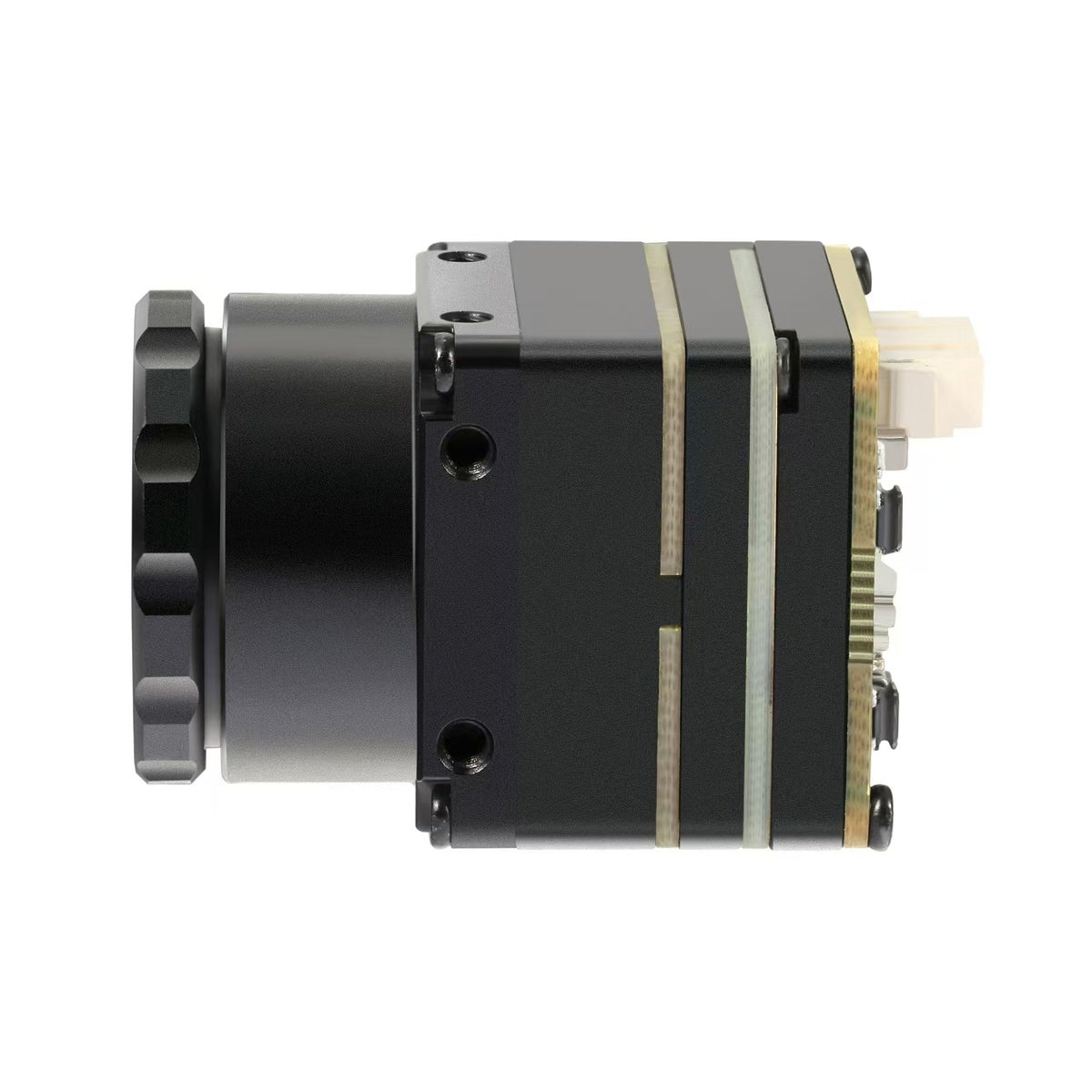

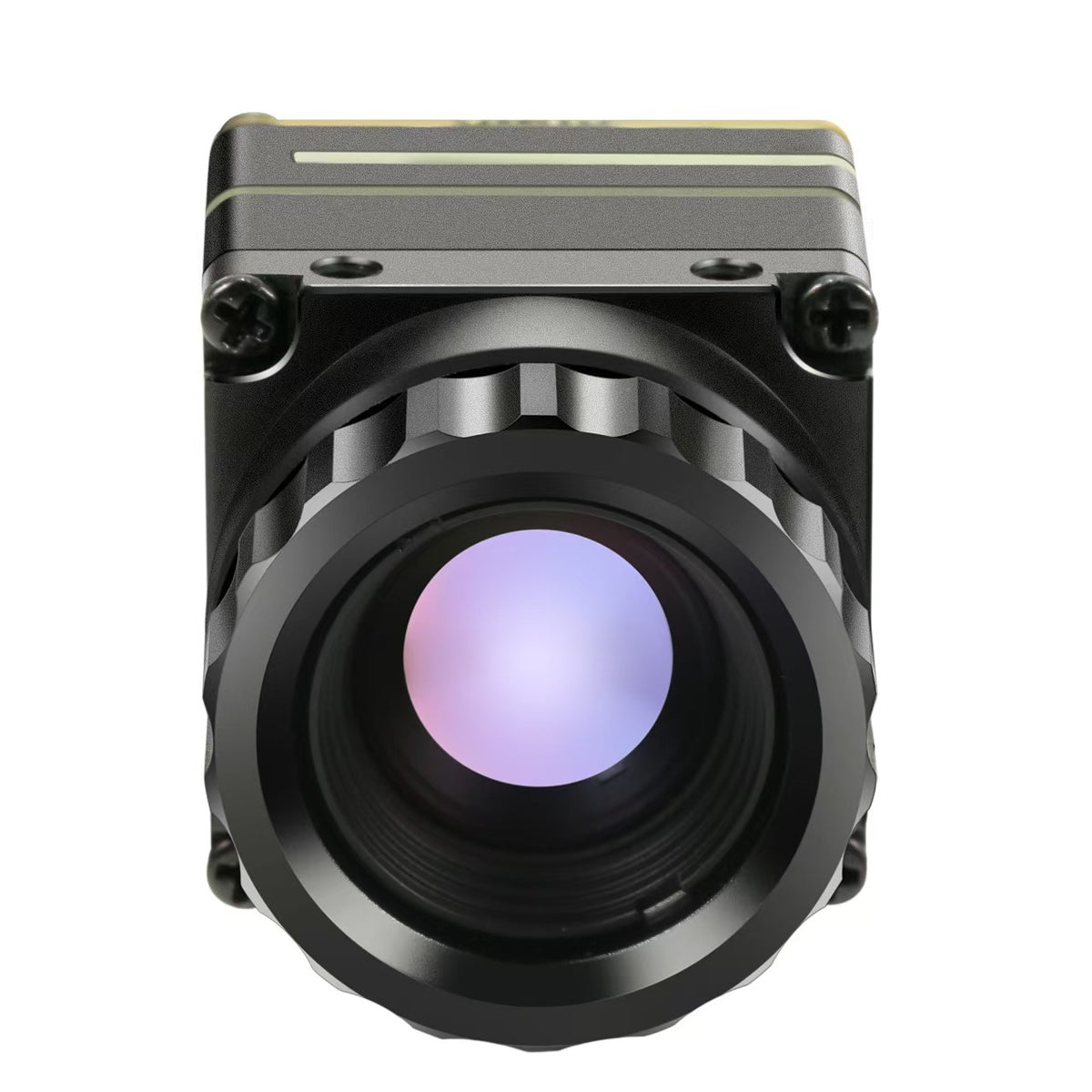

MINI Series Thermal Imaging Camera – 256/384/640 Resolution, CVBS Output, 5-20V, 21x21mm for FPV Drones
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
See the Invisible – Thermal Imaging for FPV Drones
The MINI Series brings professional-grade thermal imaging to your FPV drone. Available in 256x192, 384x288, and 640x512 resolutions, these compact modules feature 12μm pixel pitch, NETD ≤40mk for exceptional temperature sensitivity, and ultra-fast thermal response (<12ms). Outputting standard CVBS analog video with switchable PAL/NTSC, they integrate seamlessly with any analog FPV system. With 5-20V wide power input, 8x continuous digital zoom, multiple color palettes (White Hot, Iron Red, Fusion, etc.), and an industrial-grade operating range of -40°C to +80°C, these 21x21mm cores are built for search & rescue, inspection, wildlife monitoring, and professional drone operations.

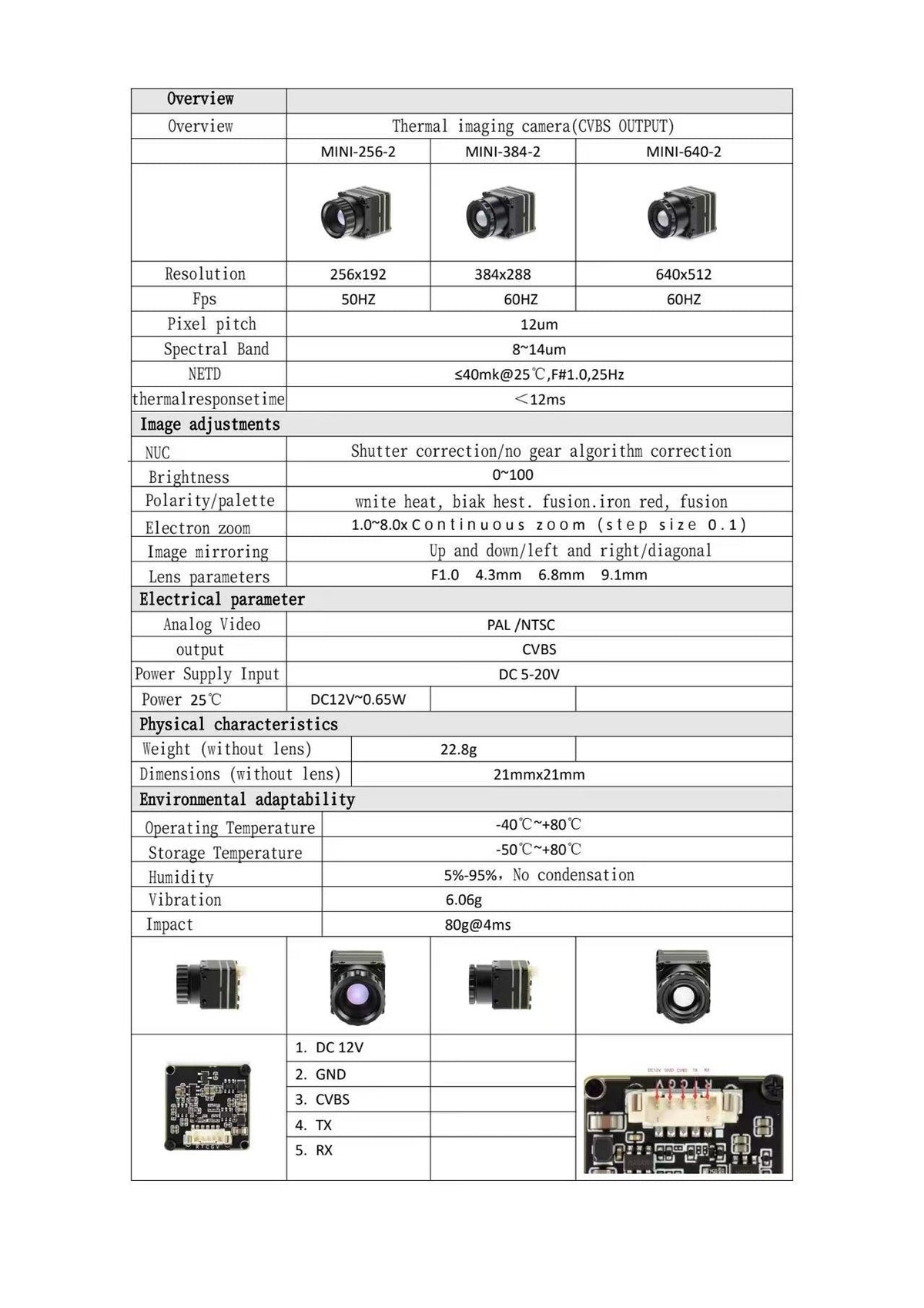

| Feature | Highlight |
|---|---|

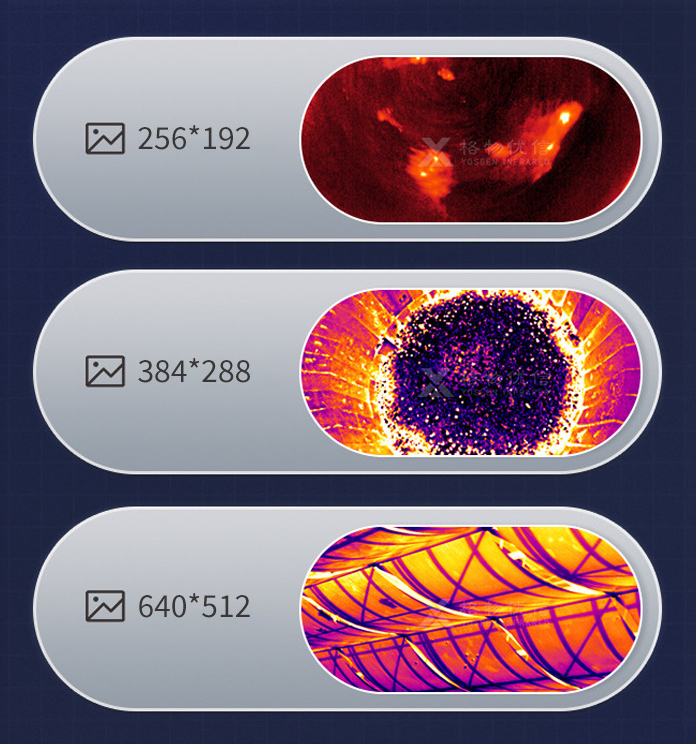

| Three Resolution Options | Choose 256x192 (50Hz), 384x288 (60Hz), or 640x512 (60Hz) to match your budget and application needs. |
| High Thermal Sensitivity | NETD ≤40mk with 12μm pixel pitch – captures subtle temperature differences with exceptional clarity. |
| Fast Thermal Response | <12ms response time ensures real-time thermal video without lag, critical for dynamic drone operations. |
| Analog Video Output | Standard CVBS output with switchable PAL/NTSC – plug directly into any analog VTX for instant thermal FPV. |
| 8x Continuous Digital Zoom | Smooth zoom from 1.0x to 8.0x (step size 0.1) for detailed inspection of distant targets. |
| Multiple Color Palettes | Selectable palettes including White Hot, Black Hot, Iron Red, Fusion – adapt to different environments and preferences. |
| Flexible Image Adjustment | Full image controls: brightness (0-100) , mirroring (H/V/Diagonal), NUC shutter correction, and polarity switching. |
| Ultra-Wide Power Input | DC 5-20V input with only 0.65W power consumption at 12V – compatible with 2S-5S LiPo batteries. |
| Rugged & Lightweight | Weighing just 22.8g (without lens) in a 21x21mm package – ideal for gimbaled or fixed-mount drone installations. |
| Industrial-Grade Durability | Operating temperature -40°C to +80°C, vibration 6.06g, shock 80g@4ms – built to withstand harsh aerial environments. |
| Lens Options Available | Choose from F1.0 4.3mm / 6.8mm / 9.1mm lenses to suit different FOV and range requirements. |
| UART Communication | TX/RX pins available for serial control and parameter configuration. |
