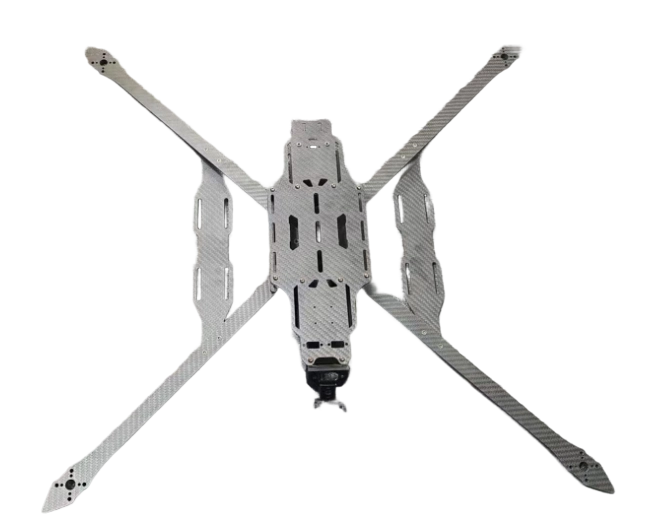

The Ultimate Heavy-Lift Titan – Mars 18-Inch Frame

The Mars 18" represents the absolute pinnacle of FPV frame engineering – an industrial-grade, heavy-lift colossus designed for professionals who demand the ultimate in payload capacity, structural integrity, and flight performance. Constructed from premium 3K T300 carbon fiber with a staggering 815mm wheelbase, this X-type frame is the definitive solution for professional cinematography, industrial inspection, agricultural surveying, and extreme long-range operations where no compromise is acceptable.

18-Inch Supremacy – The Absolute Maximum

The Mars 18" pushes the boundaries of what is possible in FPV:

• Maximum Payload Capacity: Effortlessly carry professional cinema cameras (RED Komodo, Blackmagic, Z-Cam, ARRI Alexa, Sony Venice), LiDAR systems, multispectral sensors, heavy dual/triple battery configurations, and specialized industrial inspection equipment

• Unprecedented Flight Endurance: Massive 18-inch propellers operating at minimal RPM deliver extraordinary efficiency and extended mission times exceeding 50+ minutes with proper configuration

• Weather-Defeating Authority: The colossal 815mm wheelbase provides commanding stability in high-wind and challenging environmental conditions that ground all lesser platforms

• Extreme Range Capability: Achieve 35km+ missions with proper configuration – pushing the absolute boundaries of what FPV can achieve

• Professional-Grade Footage: The massive platform absorbs turbulence and vibration, delivering gimbal-like smoothness even in challenging conditions

X-Type Architecture – Precision Agility at Ultimate Scale

The Mars platform's pure X-Type configuration offers distinct advantages for ultimate-scale applications:

• Superior Agility: More balanced roll and pitch response makes the Mars 18" feel remarkably responsive and predictable despite its colossal size

• Optimized Aerodynamics: Improved propeller wash dynamics reduce turbulent interference for smoother, more efficient flight

• Symmetrical Power Distribution: Perfectly balanced motor geometry delivers locked-in handling essential for precision operations and professional-grade footage

• Unobstructed Forward View: The X-type design provides an ideal field of view for professional cinematography and sensor operations – critical for capturing the perfect shot

10mm Ultra-Thick Arms – Ultimate Industrial-Strength Durability

The Mars 18" features 10mm thick carbon fiber arms – the gold standard for extreme heavy-lift applications:

• Absolute Rigidity: Zero flex or resonance even under extreme thrust, maximum payloads, and aggressive flight maneuvers

• Unprecedented Impact Resistance: Engineered to protect high-value professional equipment from the inevitable challenges of field operations

• Vibration-Free Performance: Perfect motor alignment ensures flawless, cinematic-grade footage free from high-frequency artifacts

• Long-Term Reliability: Built to withstand thousands of flight hours in demanding professional environments

4.0mm Bottom/Middle Plates – Maximum Core Rigidity

The Mars 18" features 4.0mm thick bottom and middle plates – the thickest in our entire lineup:

• Extreme Torsional Stiffness: Eliminates frame twist during heavy lifts and aggressive maneuvers

• Superior Electronic Protection: A fortress-like core that shields FC/ESC stacks from impact forces and vibration

• Enhanced Thread Engagement: Thicker plates provide superior hold for standoffs and screws, ensuring build integrity over time

• Natural Vibration Damping: The increased mass and rigidity absorb high-frequency oscillations for smoother flight

4.0mm Support Plates – Maximum Structural Reinforcement

The Mars 18" features dedicated 4.0mm support plates, providing maximum structural reinforcement for the largest frame in our lineup:

• Maximum Structural Bracing: Provides additional reinforcement between arms and the central core, distributing stress evenly across the massive 815mm wheelbase

• Superior Crash Protection: Adds an extra layer of protection for your electronics and payload in the event of an impact

• Maximum Torsional Rigidity: Further reduces frame flex during high-G maneuvers and heavy payload lifts

• Confidence-Inspiring Durability: Engineered for professionals who push their equipment to the absolute limit

Premium 3K T300 Carbon Fiber – Professional-Grade Construction

Every component is precision CNC-machined from genuine 3K T300 carbon fiber:

815mm Wheelbase – The Ultimate Stability Benchmark

The monumental 815mm wheelbase is the foundation of the Mars 18" ultimate capability:

• Maximum Wind Resistance: Maintains stable hover and smooth flight in gusty conditions that challenge all other platforms

• Unmatched Flight Dynamics: The expansive footprint provides locked-in, confidence-inspiring handling for precision operations

• Optimal Propeller Clearance: Ample spacing for 18-inch and even 19-inch propeller configurations

• Balanced Weight Distribution: Accommodates complex payload configurations with ideal center of gravity

Premium Hardware Package

Everything you need for a professional-grade build:

• High-strength 12.9-grade steel screws (assorted sizes)

• Precision CNC 7075 aluminum standoffs (optimized for 4.0mm plates)

• Professional-grade anti-slip silicone battery pads

• Enhanced arm damping pads (superior vibration isolation)

• Heavy-duty battery straps (x4)

Technical Specifications:

Perfect For:

• Professional Aerial Cinematography (RED Komodo, Blackmagic, Z-Cam, ARRI Alexa, Sony Venice, Canon C-series)

• Industrial Inspection & Infrastructure Surveying (bridges, power lines, pipelines, towers, wind turbines, dams)

• Agricultural Monitoring & Precision Farming (LiDAR, multispectral, NDVI, thermal, hyperspectral)

• Search & Rescue Operations

• Extreme Long-Range Exploration (35km+)

• Commercial Heavy-Lift Logistics

• Environmental Research & Wildlife Monitoring

• Film Industry Professional Drone Operations

• Geospatial Mapping & Surveying

• Military/Government Applications (requires appropriate clearances)

• Experimental & Research Platforms

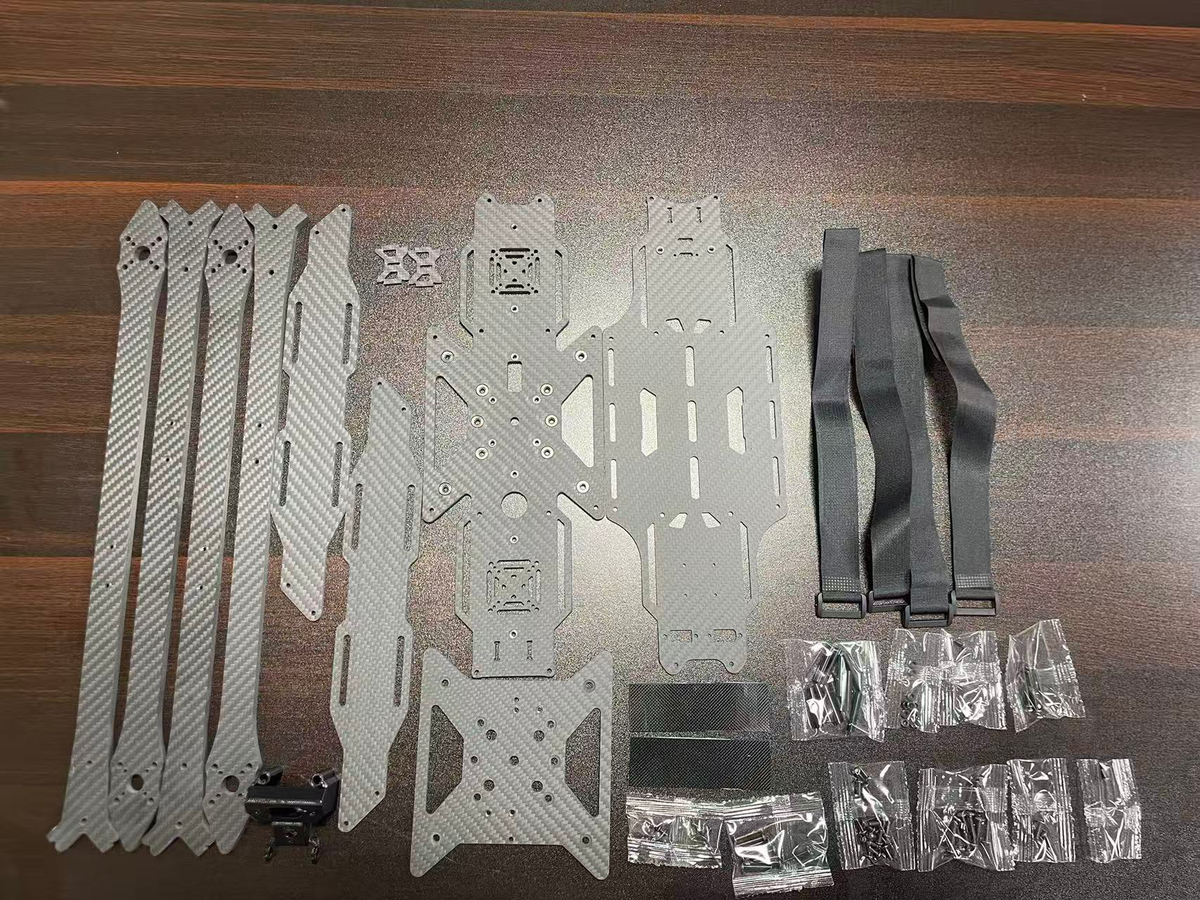

Package Includes:

• 1x Mars 18" Carbon Frame Kit (All plates & arms)

• 1x 12.9-Grade Screw Set (Assorted sizes)

• 1x 7075 Aluminum Standoff Set (Optimized for 4.0mm plates)

• 4x Heavy-Duty Battery Straps

• 1x Battery Anti-Slip Pad Set

• 1x Arm Damping Pad Set (Enhanced professional grade)

• 1x Custom 3D Printed Accessory Set

Note: Motors, ESCs, Flight Controller, Receiver, Battery, Propellers, and Camera are NOT included.

⚠️ Important Build Recommendations:

• Motors: We recommend 60xx to 80xx series motors (e.g., 6010, 6012, 7015, 8015) with appropriate KV ratings for 18-inch propellers (typically 150–280KV on 10S–18S)

• ESCs: Ensure your ESC is rated for at least 120A continuous per motor; 150A–200A recommended for aggressive flying with maximum payloads

• Battery: 10S to 18S LiPo or LiHV configurations recommended for optimal performance and efficiency

• Propellers: 18-inch bi-blade or tri-blade – high-quality balanced propellers are essential for vibration-free footage

• Standoff Note: Due to the 4.0mm plate thickness, the included standoffs are specifically sized for proper stack height – no additional spacers required

• Build Weight: Expect all-up weight ranging from 4.5kg to 10kg+ depending on payload configuration – plan your power system and CG accordingly

• Flight Controller: We recommend high-performance F7/H7 flight controllers with vibration-damping mounting for optimal performance at this scale

• GPS: Dual GPS modules recommended for redundancy in extreme-range missions

• Radio System: Long-range radio systems (Crossfire, ELRS, or 900MHz systems) recommended for maximum mission capability

• Structural Note: The 4.0mm support plates provide critical reinforcement for the 815mm wheelbase – do not omit them during assembly
