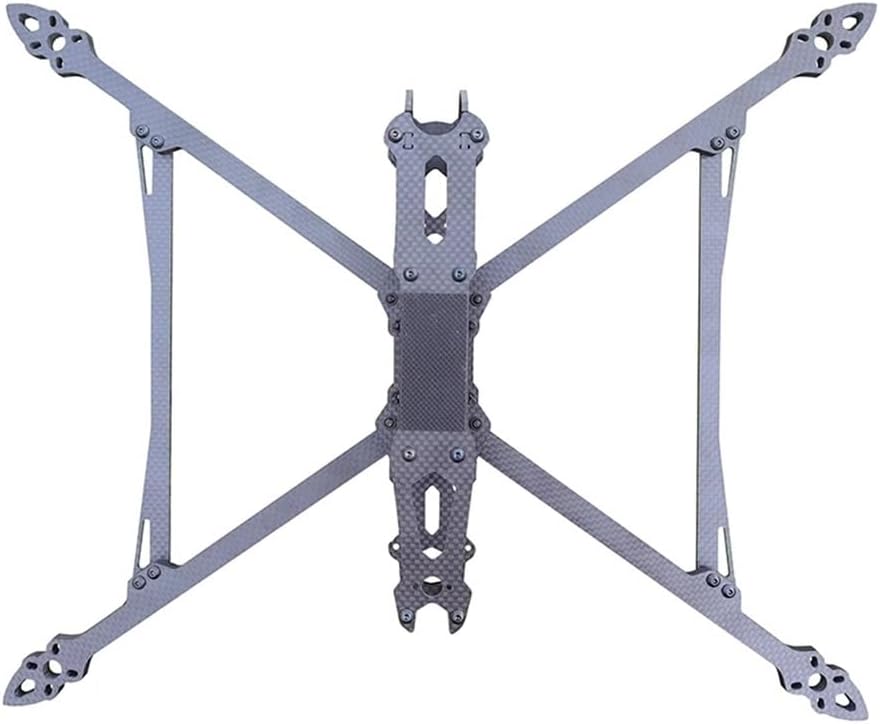

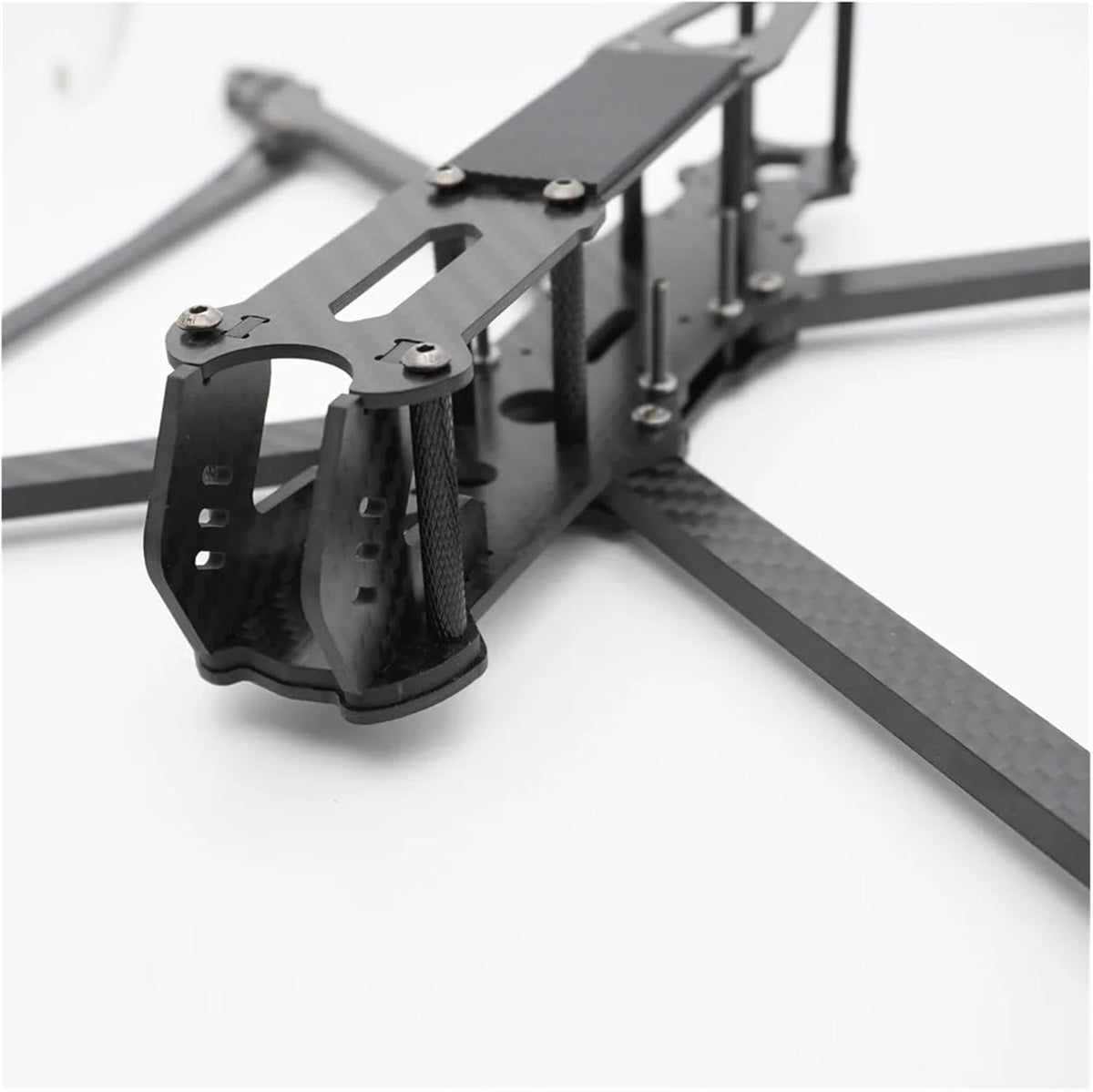

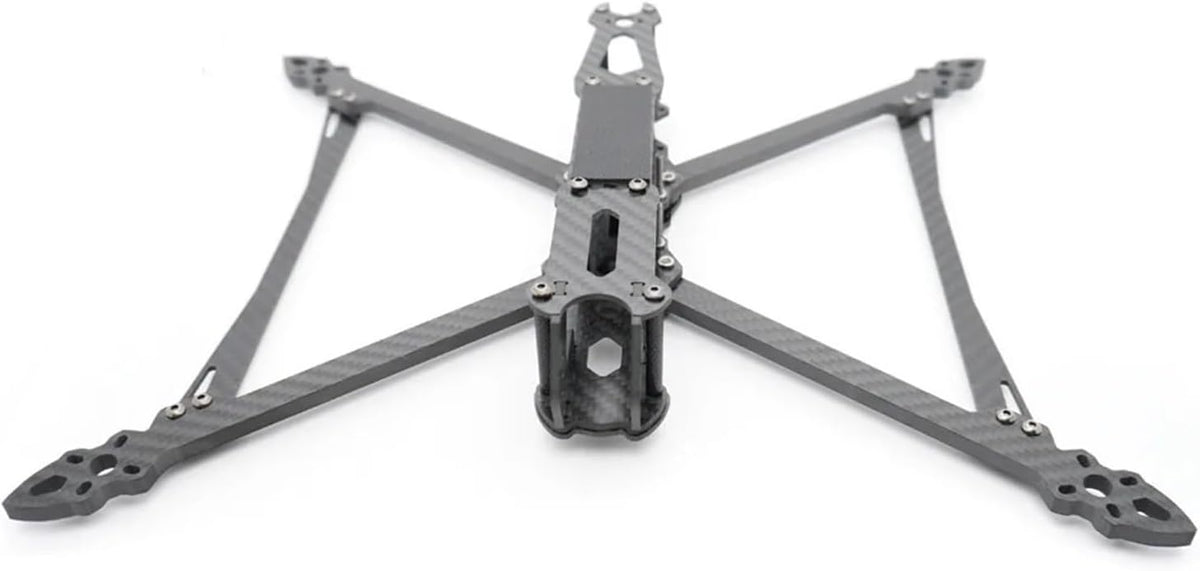

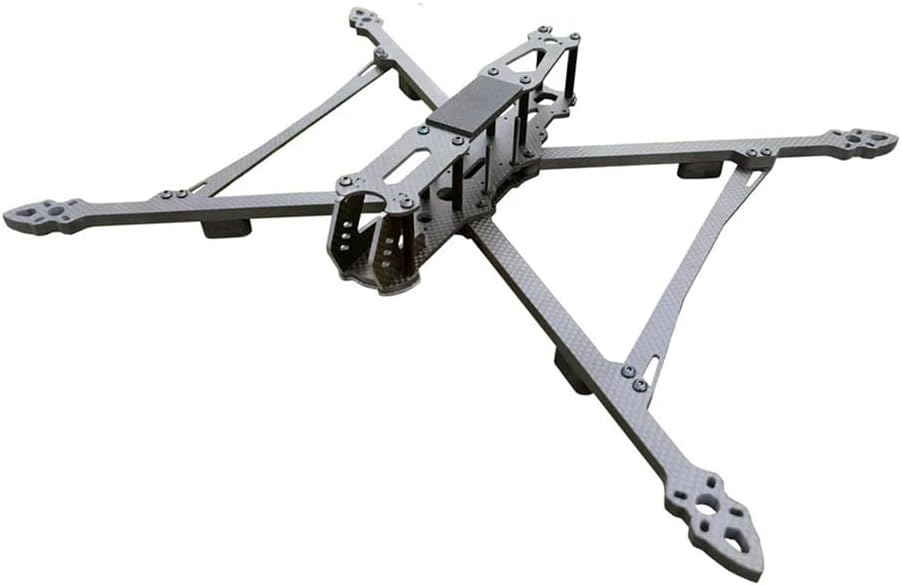

Conquer the Skies with the Mark 4 V2 8-Inch Frame

Building on the legacy of the classic MARK4 series, the Mark 4 V2 8" frame takes long-range FPV to the next level. Engineered from premium 3K T300 carbon fiber, this H-type platform offers an expanded 368mm wheelbase for exceptional stability, superior propeller clearance, and the ability to carry heavy payloads over extreme distances. Whether you are mountain surfing or exploring remote coastlines, this frame is your trusted wingman.

V2 Upgrades – Refined for Performance

The V2 iteration brings subtle yet critical refinements. Improved plate geometry reduces aerodynamic drag, while optimized stress distribution points enhance crash survivability. Every component is CNC-machined to exacting tolerances, ensuring a frustration-free build experience.

Uncompromising Durability

Long-range missions demand a frame that can survive unexpected tumbles. The Mark 4 V2 delivers with battle-ready specs:

• Genuine 3K T300 Carbon Fiber: Offers premium stiffness-to-weight ratio for responsive flight and minimal vibration.

• 6mm Ultra-Thick Arms: Eliminate resonance and twisting during high-speed passes, giving you pinpoint control.

• Strategic Plate Thickness:

  • Bottom & Middle Plates (3.0mm): Form a rigid core that protects your FC and ESC stack.

  • Top Plate (2.0mm): Lightweight yet strong enough to support HD cameras.

  • Camera Plate (2.5mm): Provides a stable, jello-free mount for your FPV cam.

  • Standoff Plates (2.0mm): Ensure precise alignment and additional rigidity.

H-Type Geometry – Built for the Long Haul

The classic H-type design lowers the center of gravity and delivers balanced thrust distribution across all four motors. Combined with the extended 368mm wheelbase, this frame tracks incredibly straight in forward flight, reducing pilot workload during those nerve-wracking long-range return trips.

Complete Hardware Kit Included

We've got you covered with everything you need for assembly:

• Stainless steel screw set (assorted sizes)

• Precision aluminum standoffs

• Anti-slip battery pads

• Silicone arm damping pads

• Durable battery straps

Technical Specifications:

• Size: 8-inch Propeller Compatible

• Wheelbase: 368mm

• Material: 3K Carbon Fiber T300

• Frame Type: H-Type

• Arm Thickness: 6.0mm

• Bottom/Middle Plate: 3.0mm

• Top Plate/Reinforcements: 2.0mm

• Standoff Plate: 2.0mm

• Camera Plate: 2.5mm

Perfect For:

• Long-Range Cruising & Mountain Surfing

• Heavy Payload Carrying (GoPro 360 / Full-size Action Cams)

• Smooth Cinematic FPV

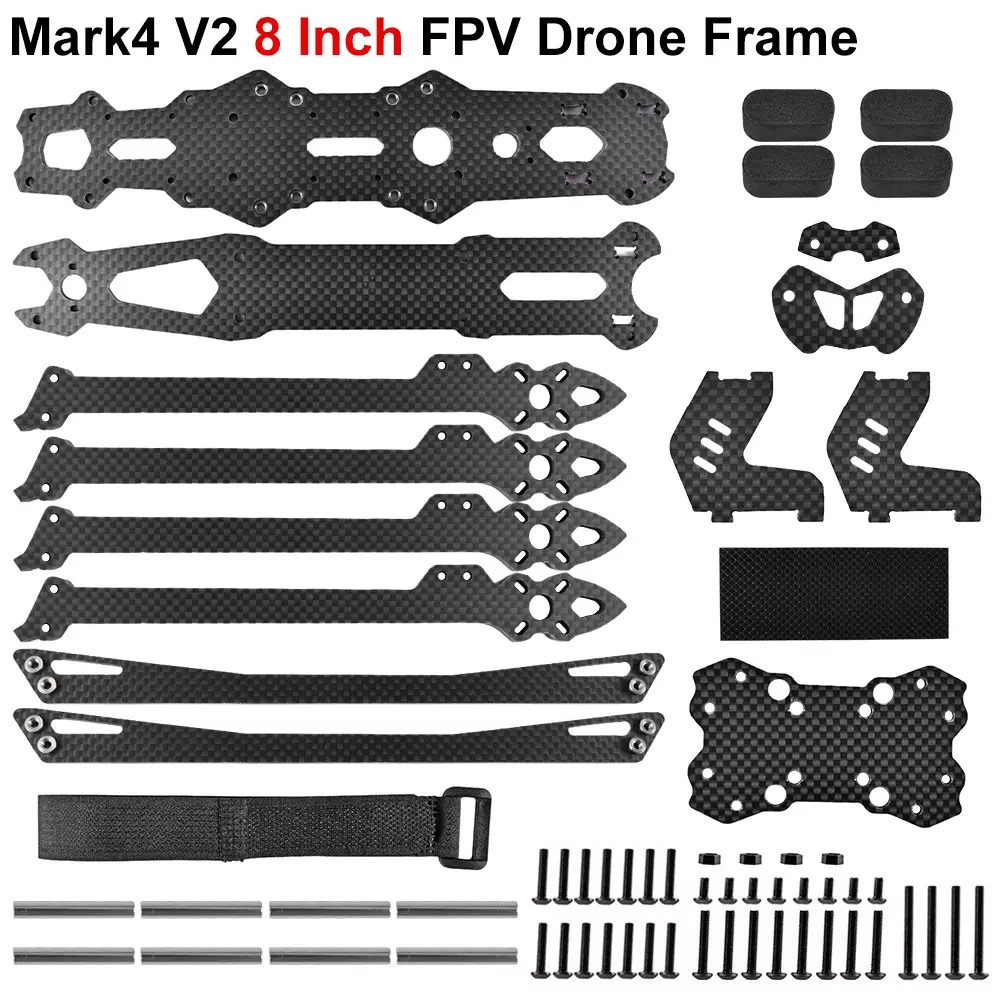

Package Includes:

• 1x Mark 4 V2 8" Carbon Frame Kit (All plates & arms)

• 1x Screw Set (Assorted sizes)

• 1x Aluminum Standoff Set

• 1x Battery Strap

• 1x Battery Anti-Slip Pad

• 1x Arm Damping Pad Set

Note: Motors, ESCs, Flight Controller, Receiver, and Camera are NOT included.
