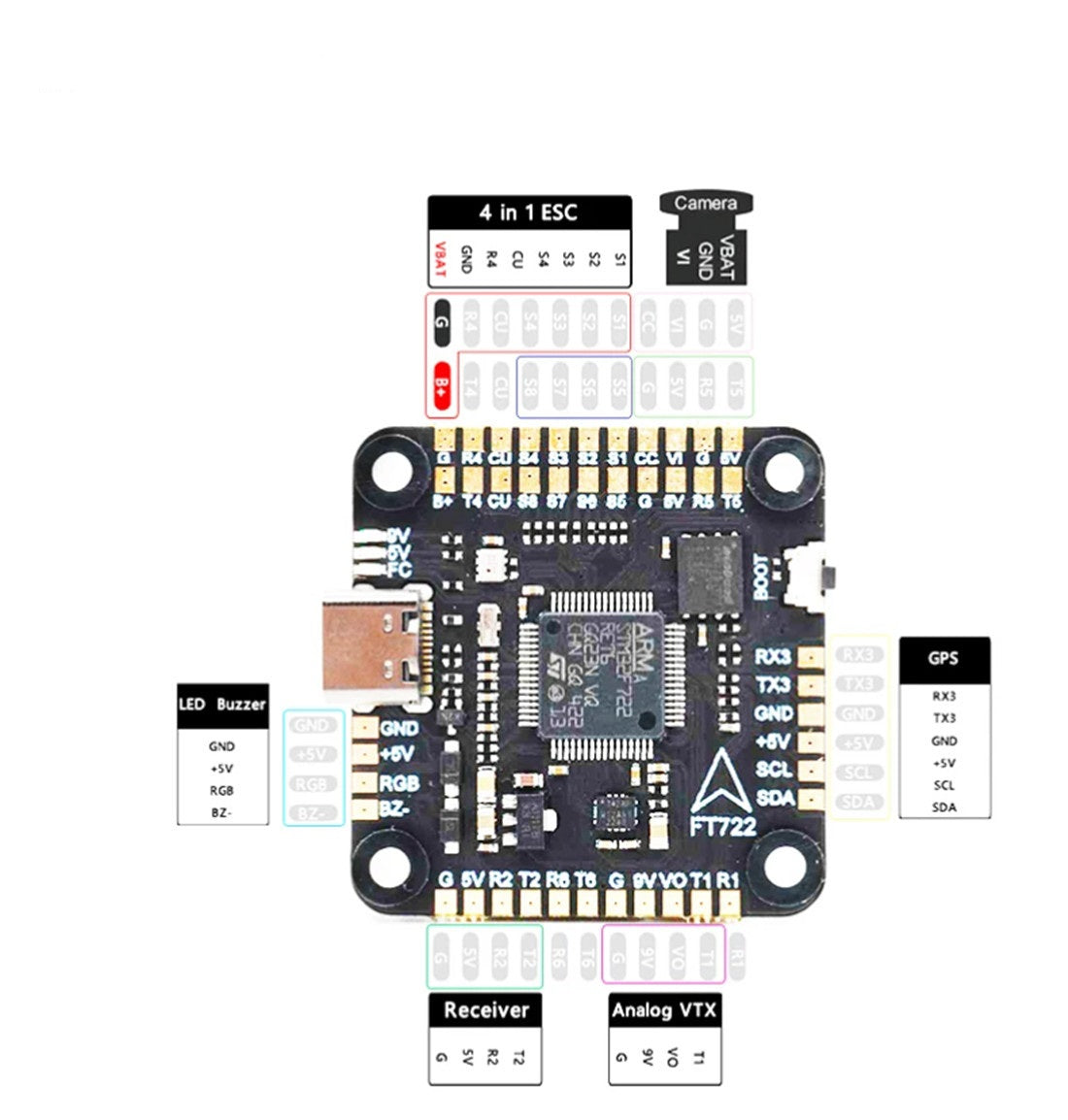

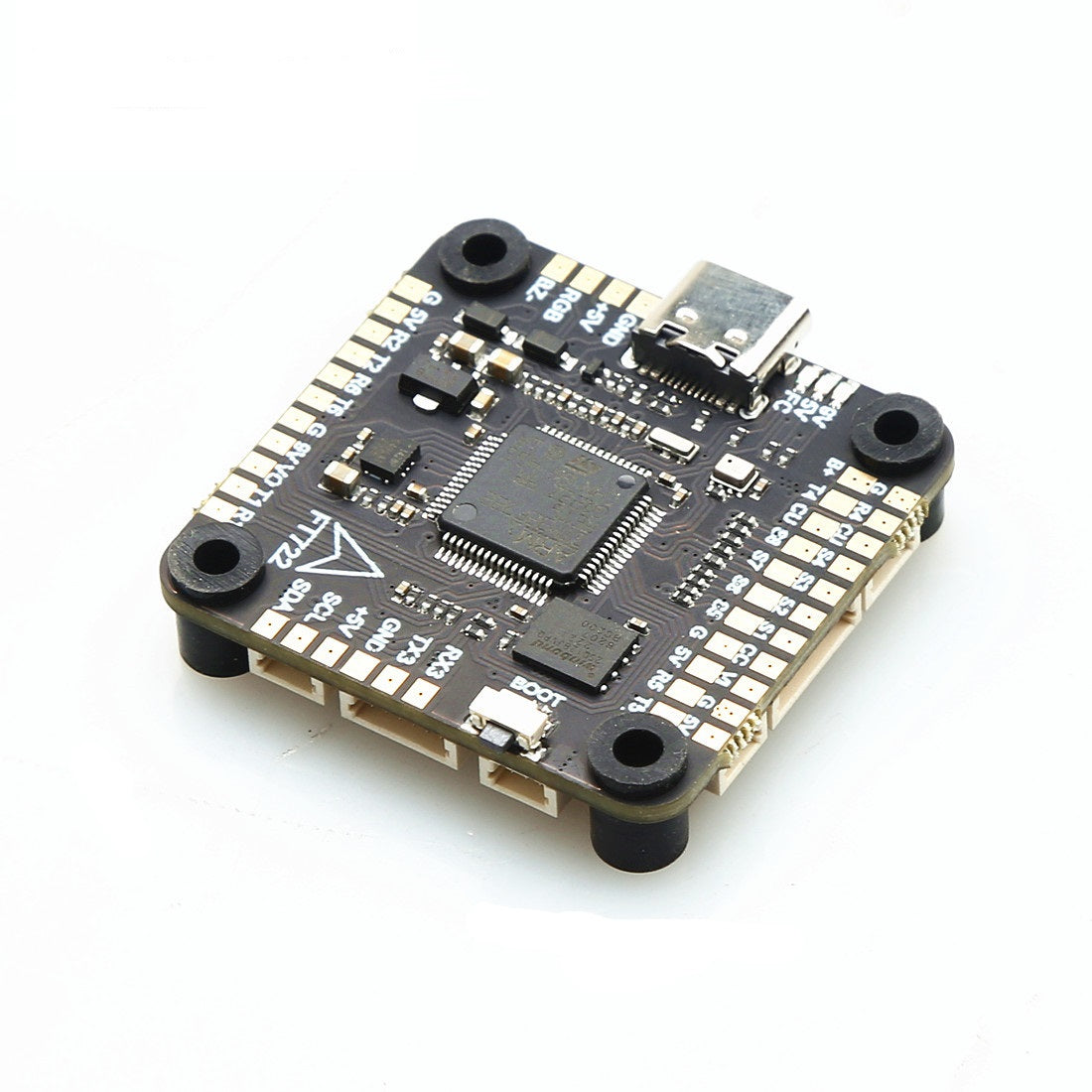

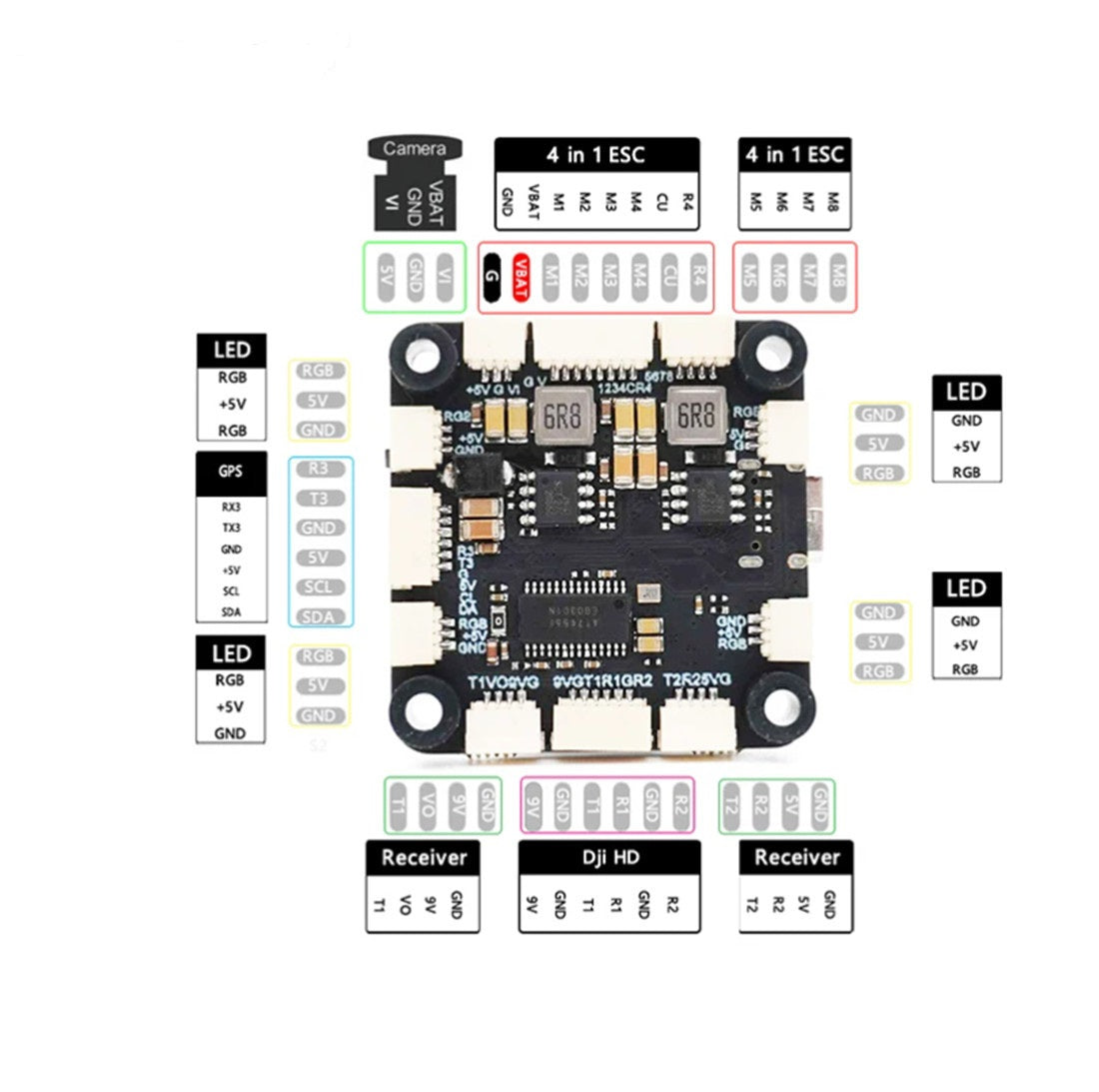

Flight Controller – F722 36x36mm

• MCU: STM32F722RET6 – high-speed processing for smooth PID loops and filter handling

• IMU: ICM-42688 – low-noise, high-G gyro for accurate attitude sensing

• OSD: 7456e – on-screen display with full Betaflight OSD support

• Barometer: SPL06-001 – altitude hold and telemetry ready

• Blackbox: 16MB onboard flash – tune and diagnose with confidence

• Input Voltage: 3-8S LiPo (11.4V – 36V)

• Dual BEC Outputs:

  • 5V / 2.5A – for FC, RX, GPS, and other peripherals

  • 10V / 2A (User 1) – ideal for VTX and camera (adjustable/smart output)

• Additional IO: User 2 pad for flexible expansion

• Receiver Support: ELRS (CRSF), TBS Crossfire (CRSF), SBUS, F.Port, DSM2, DSMX

• UARTs: 5x (UART2/3/4/5/6) – plenty for GPS, VTX control, LiDAR, etc.

• ESC Signal: PWM, Oneshot125/42, Multishot, DSHOT150/300/600

• USB: Type-C – easy connectivity and firmware updates

• Firmware Target: AXISFLYINGF7PRO (Betaflight / INAV compatible)

• Mounting: 30.5 x 30.5mm (4mm holes)

• Weight: 8.8g
