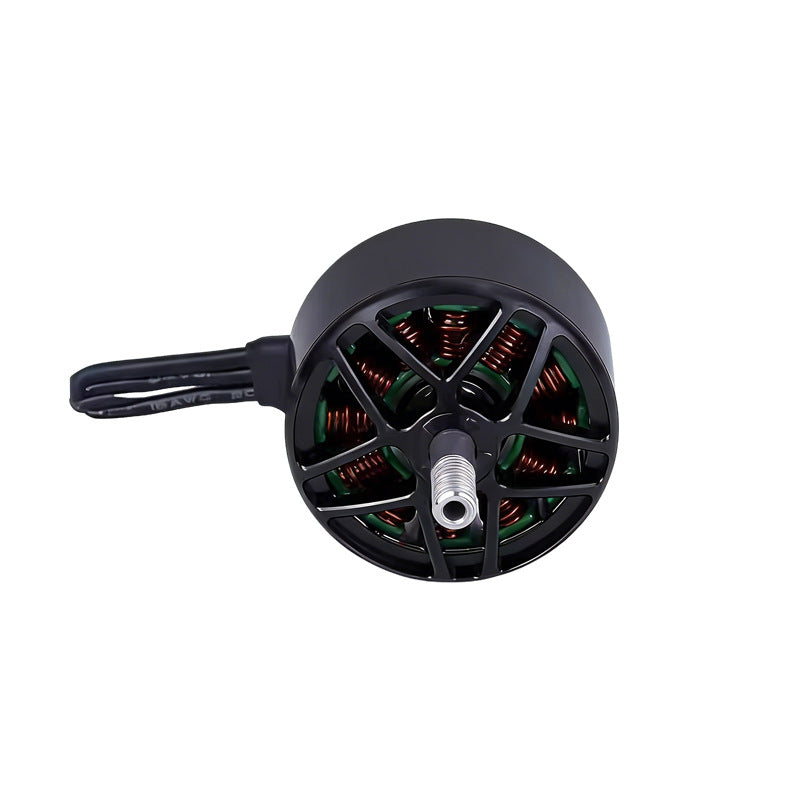

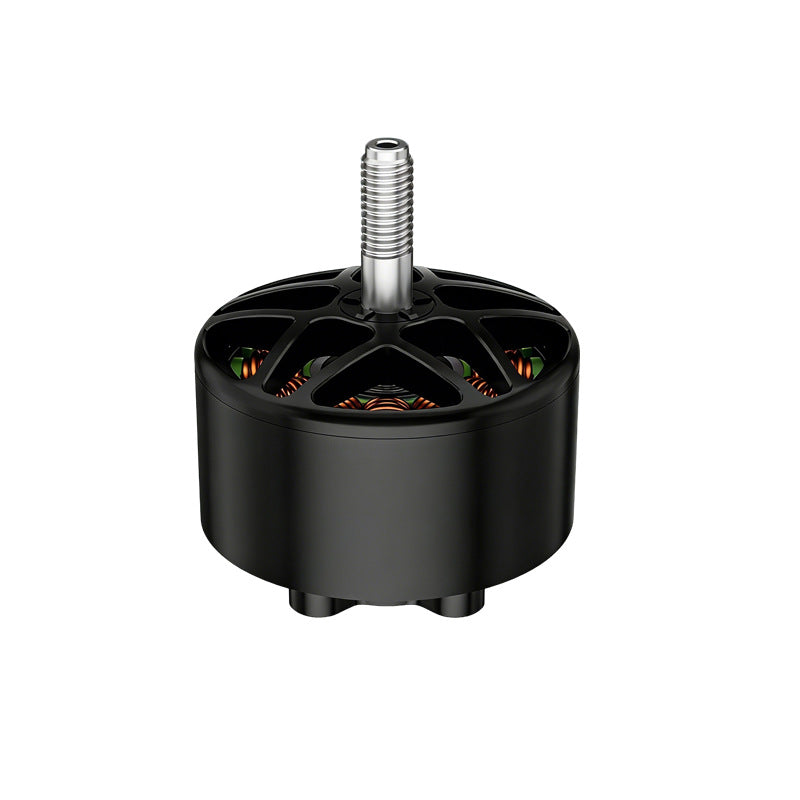

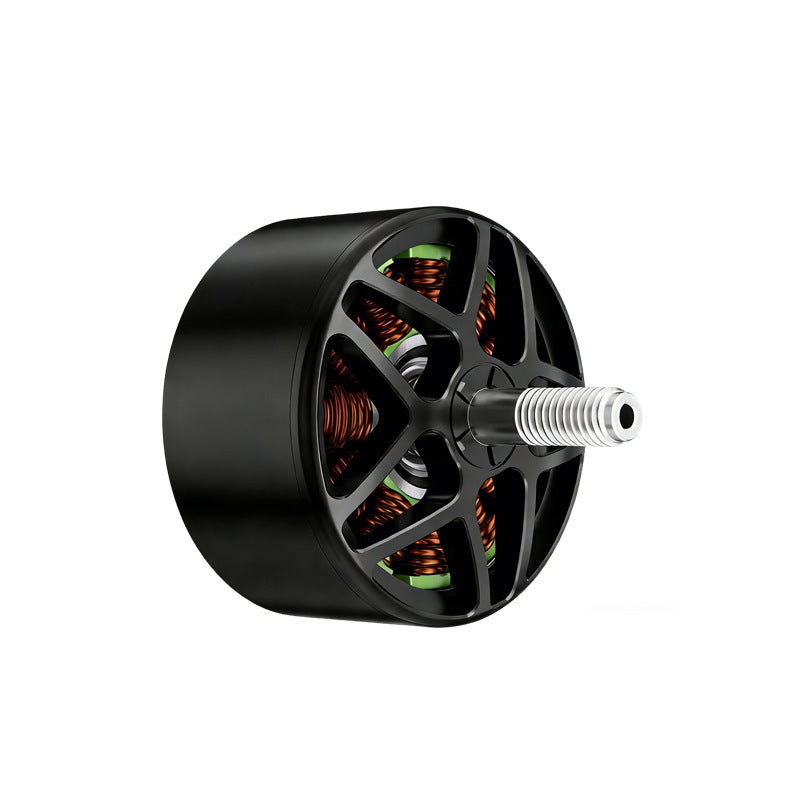

4720 380KV/430KV Brushless Motor 4-Pack – Heavy-Lift 17"–20" Drone Motor, 16000RPM with 6mm Shaft, 25mΩ Ultra-Low Resistance for 8S–12S Professional UAV
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Maximum Payload. Maximum Performance. Maximum Trust.
When your mission demands the absolute best in heavy-lift propulsion, the 4720 Brushless Motor 4-Pack delivers. Purpose-built for professional-grade UAVs carrying substantial payloads – from cinema-grade cameras and LiDAR sensors to agricultural sprayers and cargo systems – this motor combines immense power, ultra-low internal resistance, and industrial-grade durability. Available in 380KV and 430KV variants, the 4720 is the ultimate choice for 17"–20" multi-rotor platforms operating on 6S–8S (and beyond) high-voltage systems.
🔧 Key Specifications
| Parameter | Detail |
|---|---|
| Model | 4720 (380KV / 430KV) |
| Slot/Pole Count | 12N/14P |
| Dimensions | Φ54.7mm × 69.8mm |
| Internal Resistance | Ultra-Low 25.0mΩ |
| Operating Voltage | 6S – 8S+ (24V – 36V) |
| Rated Current | 0.065A |
| No-Load Speed | Up to 16,000 RPM |
| Rated Power | 380KV: 0.9kW; 430KV: 0.95kW (900W – 950W continuous) |
| Rated Torque | 0.0018 N·mm |
| Shaft Diameter | 6mm Hardened Steel |
| Silicone Wire | 18AWG / 260mm |
| Weight per Motor | 350g |
| Package | 4 Motors + Accessories |
🏗️ Industrial-Grade Engineering – No Compromises
-
6061-T6 Aerospace Aluminum Housing – Massive CNC-machined housing with optimized cooling fins for superior heat dissipation during extended heavy-load missions.
-
220°C High-Temperature Copper Windings – Withstands extreme thermal stress, ensuring reliable performance in demanding commercial applications.
-
N52H Neodymium Magnets – The strongest commercially available magnet grade delivers maximum magnetic flux for unparalleled torque density and efficiency.
-
Dual 685 Oversized Bearings – Precision bearings engineered for the high-stress environment of heavy-lift operations, ensuring smooth rotation and extended service life.
-
6mm Hardened Steel Shaft – Extra-thick, heat-treated shaft handles immense gyroscopic forces and shock loads from 17"–20" propeller systems with zero flex.
⚡ Choose Your KV – Tailor Your Power Curve
| Variant | Rated Power | No-Load Speed | Best Prop | Voltage | Best For |
|---|---|---|---|---|---|
| 380KV | 900W | Up to 16,000 RPM | 18" – 20" | 8S–12S | Maximum torque for extreme payloads, long endurance, heavy agricultural/cargo drones |
| 430KV | 950W | Up to 16,000 RPM | 17" – 19" | 6S–8S | Higher RPM for faster climbs, more responsive heavy-lift cinematography and survey work |
Both variants share the same legendary 4720 build quality – choose based on your battery configuration and required thrust-to-speed balance.
🚀 Performance That Redefines Heavy-Lift
| Feature | What It Means for You |
|---|---|
| Ultra-Low 25mΩ Internal Resistance | Industry-leading efficiency – minimizes heat generation, maximizes power conversion, extends flight endurance |
| 950W Continuous Power per Motor | 3.8kW total system power (4 motors) – enough to lift professional payloads with confidence |
| 6S–8S+ Voltage Range | Flexible power system integration for various battery configurations |
| Massive Φ54.7mm × 69.8mm Stator | Unmatched torque generation for swinging the largest propellers in the FPV/UAV market |
| 350g Robust Construction | Substantial thermal mass ensures cool, stable performance during sustained heavy-load missions |
| 16,000 RPM No-Load Speed | Impressive top-end capability for a motor of this size |
📦 What's Included
-
4 x 4720 Brushless Motors (choose 380KV or 430KV)
-
Accessories
🎯 Perfect For
| Application | Why 4720 |
|---|---|
| Professional Cinematography Drones (Heavy Cameras) | Silent, smooth, vibration-free power for pristine footage |
| Agricultural Spraying UAVs | Reliable heavy-lift for tanks and spray booms |
| LiDAR & Surveying Drones | Stable hover and precise positioning for accurate data collection |
| Cargo & Logistics Drones | Carries commercial payloads safely and efficiently |
| Search & Rescue UAVs | Payload capacity for thermal cameras and rescue equipment |
| Large-Scale Heavy-Lift FPV | Ultimate power for custom 17"–20" builds |
| Industrial Inspection Platforms | Long endurance and consistent performance |
📊 Thrust & Efficiency Snapshot (Approximate – 380KV Model)
| Propeller | Battery | Approx. Thrust per Motor | Efficiency |
|---|---|---|---|
| 18" × 5.5" | 8S 8000mAh | ~4,500g – 5,000g | ~10.5g/W |
| 19" × 5.5" | 8S 10000mAh | ~5,200g – 5,800g | ~11.0g/W |
| 20" × 6" | 10S 12000mAh | ~6,000g – 6,800g | ~11.5g/W |
Values are approximate and vary by propeller brand, battery condition, altitude, and environmental factors. Higher KV variants will produce different thrust curves.
⚠️ Important Notes
-
Recommended ESC: ≥ 60A continuous (80A–100A burst) – ensure ESC supports your chosen voltage (6S–8S+).
-
Propeller Range: 17"–20" diameter optimized.
-

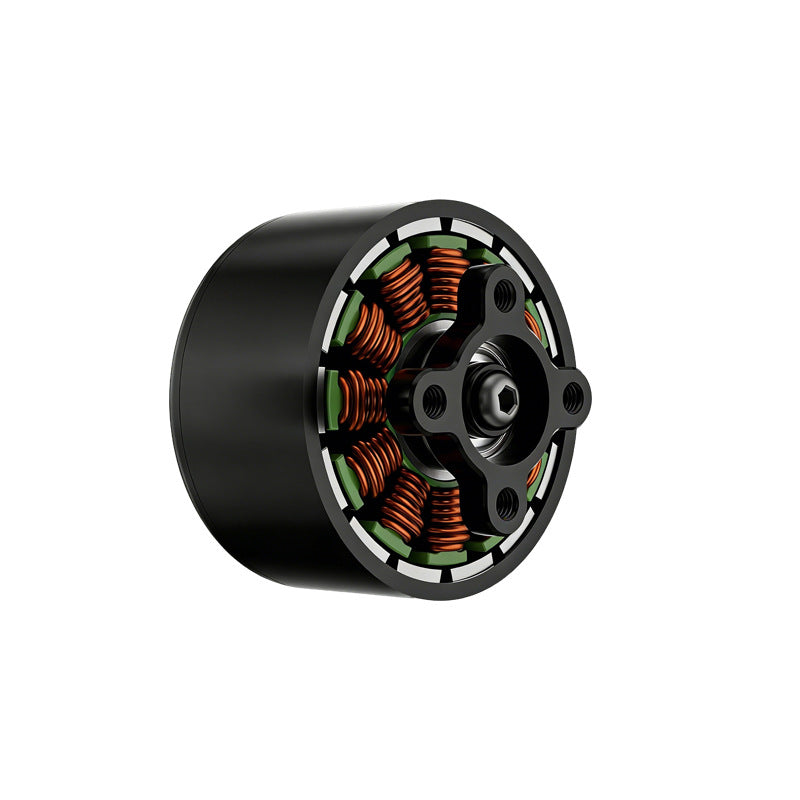

Motor Mounting: Standard M3/M4 pattern – verify frame compatibility before installation.
-
Batteries, ESCs, and propellers are not included.
-
Professional installation and tuning required for commercial/commercial-grade applications.
-
Allow adequate cooling between intensive missions – consider active cooling for sustained heavy-load operations.
🔗 Recommended System Configuration (380KV)
| Component | Recommendation |
|---|---|
| Battery | 8S 8000mAh–10000mAh LiPo / LiHV |
| ESC | 4-in-1 or individual 80A–100A, 8S–10S capable |
| Propeller | 18" × 5.5" or 19" × 5.5" carbon fiber |
| Frame | 900mm–1200mm heavy-lift hexacopter or quadcopter |
Ready to build the drone that professionals rely on? Add the 4720 Motor 4-Pack to your cart and experience heavy-lift propulsion engineered for the most demanding missions!
