$119.99

Shipping calculated at checkout.

Selling quickly! people have this item in their carts
People are currently viewing this
In stock!
Free Shipping

No code needed — just add items to your cart and head to checkout!

Easy 30-day Returns

Changed your mind? No problem. You have 30 days to return your item, no questions asked.

Free shipping!
Spend to Free shipping
KV: 380KV
Select The Options Above

Industrial-Grade Power for Heavy-Lift & Professional UAV Platforms

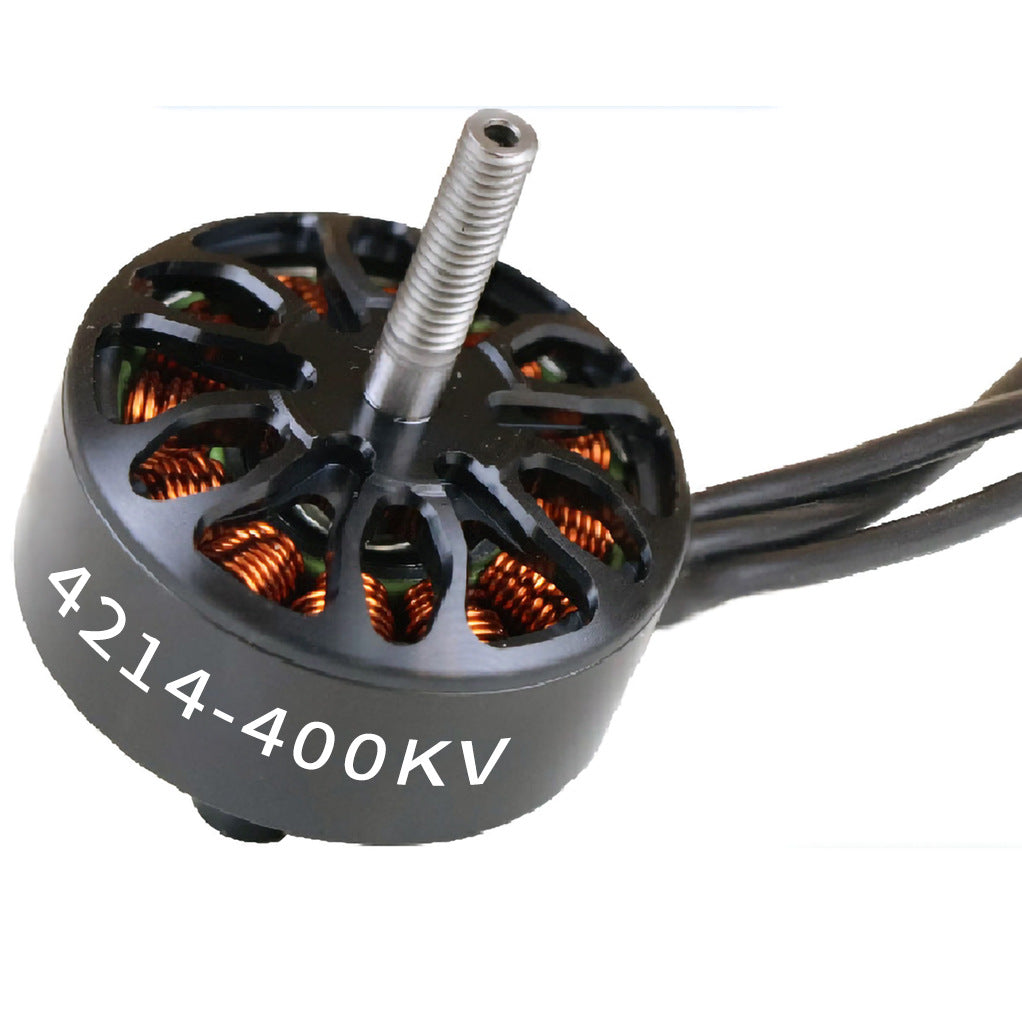

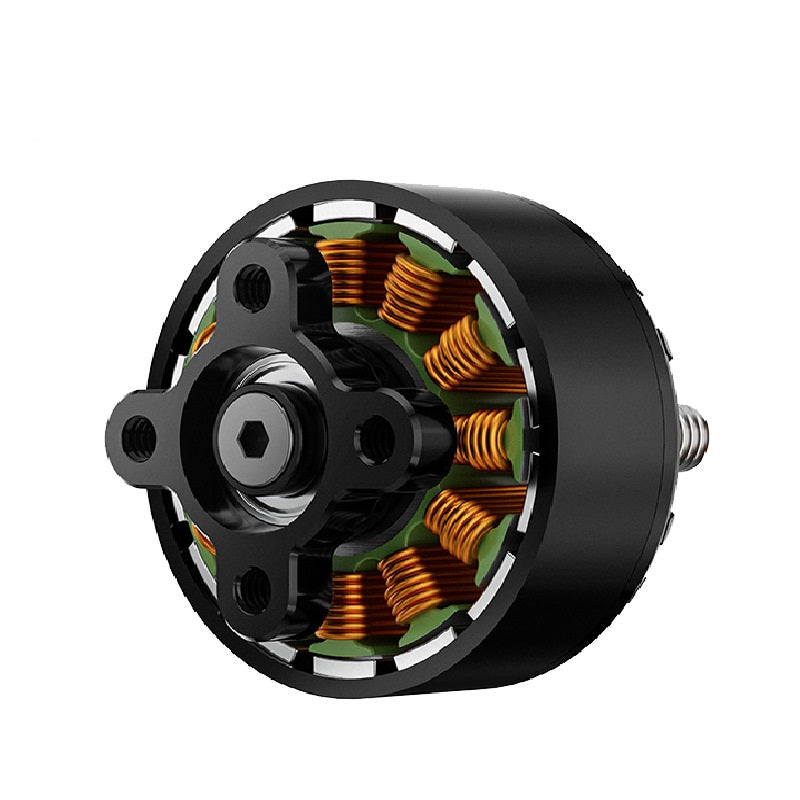

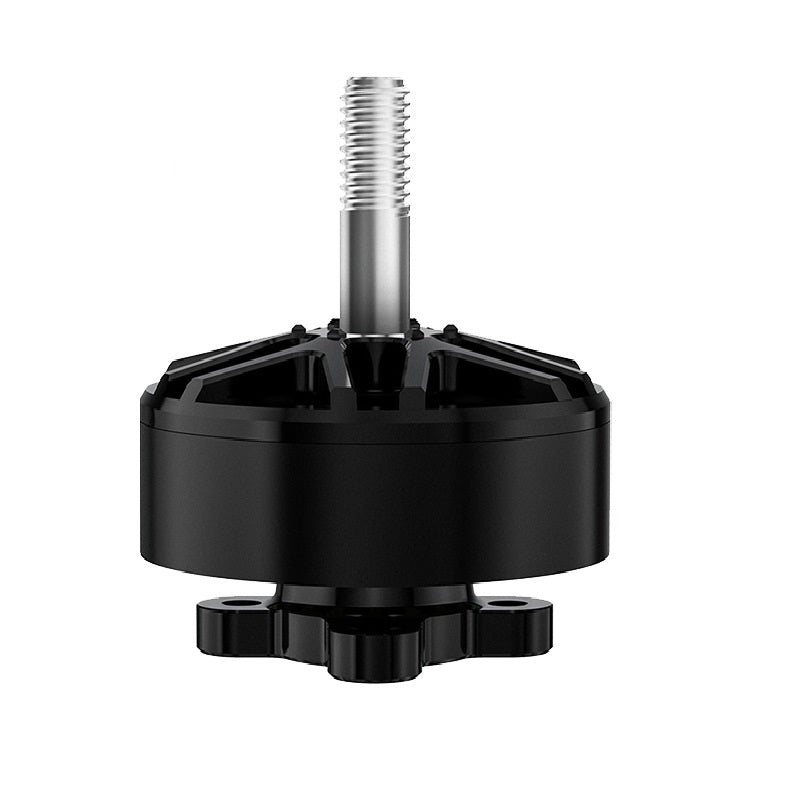

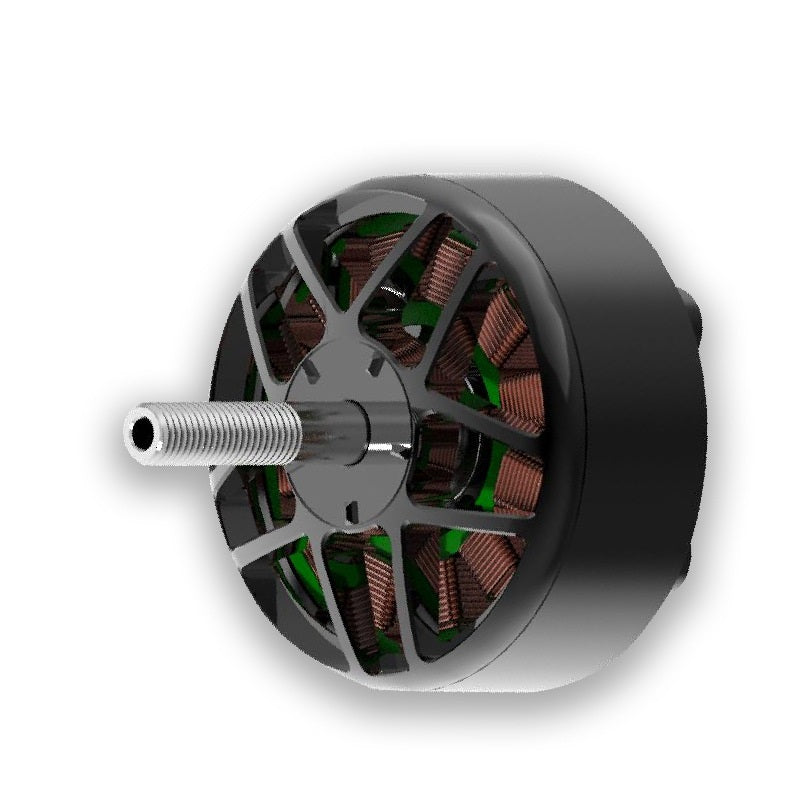

Step up to serious aerial capability with the 4214 Brushless Motor 4-Pack – engineered for heavy-lift drones, professional cinematography rigs, agricultural spraying UAVs, and industrial inspection platforms. Available in five KV variants (380KV–640KV), this motor delivers up to 1,693W of peak power and massive torque to swing 13"–17" propellers with effortless authority. Built with oversized 6mm shaft, 14AWG silicone leads, and aerospace-grade materials, the 4214 is designed for mission-critical reliability where failure is not an option.

🔧 Key Specifications



Parameter Detail
Model 4214 (380KV / 400KV / 420KV / 600KV / 640KV)
Slot/Pole Count 12N/14P
Dimensions Φ49mm × 59mm
Internal Resistance 46.0mΩ
Rated Voltage 23.73V – 23.95V (6S–12S Compatible)
No-Load Speed 4,220 – 10,742 RPM (varies by KV)
Rated Power 171.6W – 1,693.1W
Rated Torque 2.88 – 7.74 N·mm
Shaft Diameter 6mm
Silicone Wire 14AWG / 800mm
Weight per Motor 260g
Package 4 Motors + Accessories

🏗️ Professional-Grade Construction – Built to Last

  • 6061-T6 Aerospace Aluminum Housing – Precision-CNC-machined for exceptional heat dissipation, structural rigidity, and corrosion resistance in demanding environments.

  • 220°C High-Temperature Copper Windings – Maintains performance integrity under continuous heavy loads, ensuring reliable operation in extreme conditions.

  • N52H Neodymium Magnets – The strongest commercially available magnet grade delivers maximum magnetic flux for superior torque density and efficiency.

  • Dual 685 Bearings – Oversized precision bearings provide silky-smooth rotation and exceptional durability under high-stress, high-vibration operations.

  • 6mm Hardened Steel Shaft – Heavy-duty shaft design withstands the immense gyroscopic forces and weight of 13"–17" propeller systems.

⚡ Choose Your KV – Match Your Mission

Variant No-Load Speed (RPM) Best Prop Range Voltage Best For
380KV 4,220 – 9,634 16" – 17" 10S–12S Maximum efficiency, heavy payloads, long-endurance surveying
400KV 9,424 15" – 16" 8S–12S Balanced heavy-lift cinematography
420KV 9,600 15" – 16" 8S–12S Versatile heavy-lift with slightly higher RPM
600KV 9,800 14" – 15" 6S–8S Agility-focused heavy-lift, faster response
640KV 10,742 13" – 14" 6S Sporty heavy-lift, maximum RPM on 6S systems

All variants share identical premium build quality – select based on your payload, battery configuration, and desired flight characteristics.

🚀 Performance That Carries the Future

Feature What It Means for You
1,693W Peak Power Industry-leading thrust capability for heavy payloads up to several kilograms per motor
Massive Torque (up to 7.74 N·mm) Effortlessly swings 13"–17" propellers with smooth, linear power delivery
Ultra-Low 46.0mΩ Internal Resistance Minimizes heat generation and energy loss for cooler motors and longer flight endurance
14AWG Silicone Wires (800mm) Heavy-gauge, extra-long leads reduce voltage drop and simplify clean routing on large airframes
6mm Steel Shaft Withstands extreme forces – no bending or shearing even in hard landings
Wide Voltage Compatibility (6S–12S) Unmatched flexibility to adapt to any professional UAV configuration

📦 What's Included

  • 4 x 4214 Brushless Motors (choose your KV)

  • Accessories

🎯 Perfect For

Application Why 4214
Professional Cinematography Drones Silent, smooth power for gimbal-stabilized camera work
Agricultural Spraying UAVs Reliable heavy-lift for tanks and spray systems
Industrial Inspection & Surveying Long endurance and stable hover performance
Search & Rescue Drones Payload capacity for sensors and thermal cameras
Cargo / Logistics Drones Carries commercial payloads safely and efficiently
Large-Scale FPV & Heavy-Lift Platforms Aggressive power for oversized custom builds

📊 Thrust & Efficiency Snapshot (Approximate – 380KV Model)

Propeller Battery Thrust per Motor Efficiency
16" × 5.5" 12S 5000mAh ~3,800g ~9.5g/W
17" × 5.5" 12S 6000mAh ~4,200g ~10.2g/W
16" × 6" 10S 8000mAh ~3,500g ~10.8g/W

Values are approximate and vary by propeller brand, battery condition, and environmental factors. Higher KV variants will produce different thrust curves – contact us for detailed data.

⚠️ Important Notes

  • Recommended ESC: ≥ 60A continuous (80A burst) – ensure ESC supports your chosen voltage (6S–12S).

  • Propeller range: 13"–17" diameter optimized.

  • Motor mounting: Standard M3/M4 pattern – verify frame compatibility.

  • Batteries, ESCs, and propellers are not included.

  • Professional installation and tuning recommended for commercial applications.

  • Allow adequate cooling between high-intensity missions.

Engineering the future of heavy-lift UAVs – order the 4214 Motor 4-Pack today and build the drone that professionals trust!
