3215 880KV Brushless Motor 4-Pack – 10" FPV Racing & Freestyle Motor, 1568W Peak Power with 5mm Shaft & N52H Magnets for 6S–8S
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Race-Ready Power for 10" Monsters
Dominate the competition with the 3215 880KV Brushless Motor 4-Pack – a purpose-built powerhouse for 10" racing, freestyle, and heavy-lift FPV platforms. Delivering a staggering 1,568W of peak output, this motor combines explosive acceleration with the torque needed to swing large-diameter props with authority. Engineered with aerospace-grade materials and precision components, the 3215 is designed to outperform – lap after lap, flight after flight.
🔧 Key Specifications
| Parameter | Detail |
|---|---|
| Model | 3215-880KV |
| Slot/Pole Count | 12N/14P |
| No-Load Speed | 9,011 RPM |
| Rated Voltage | 3.7V – 22.2V+ (4S–8S Compatible) |
| Rated Power | Up to 1,568W |
| Rated Torque | 0.5 N·mm |
| Shaft Diameter | 5mm |
| Silicone Wire | 18AWG / 250mm |
| Weight per Motor | 125g |
| Package | 4 Motors + Accessories |
🏆 Built for Champions – Premium Construction
-
6061-T6 Aerospace Aluminum Housing – CNC-machined for precision fit, superior heat dissipation, and battle-ready durability.
-
220°C High-Temperature Copper Windings – Withstands extreme thermal loads during high-intensity racing and aggressive freestyle sessions.
-
N52H Neodymium Magnets – The strongest commercially available magnet grade, delivering unmatched magnetic flux for explosive torque and rapid throttle response.
-
Dual 685 Bearings – Engineered for silky-smooth rotation and long-lasting reliability under the most demanding conditions.
⚡ Performance That Sets You Apart
| Feature | What It Means for You |
|---|---|
| 1,568W Peak Power | Jaw-dropping thrust for vertical punch-outs, rapid acceleration, and carrying heavy 10" setups with ease |
| 880KV Sweet Spot | Perfectly balanced for 6S–8S high-voltage systems – ideal for both racing precision and freestyle authority |
| 0.5 N·mm Torque | Effortlessly spins 10" propellers with consistent, linear power delivery across the entire throttle range |
| 9,011 RPM No-Load Speed | High-RPM capability for top-end speed when you need it most |
| 125g Robust Build | Substantial thermal mass ensures cool operation during sustained full-throttle runs |
📦 What's Included
-

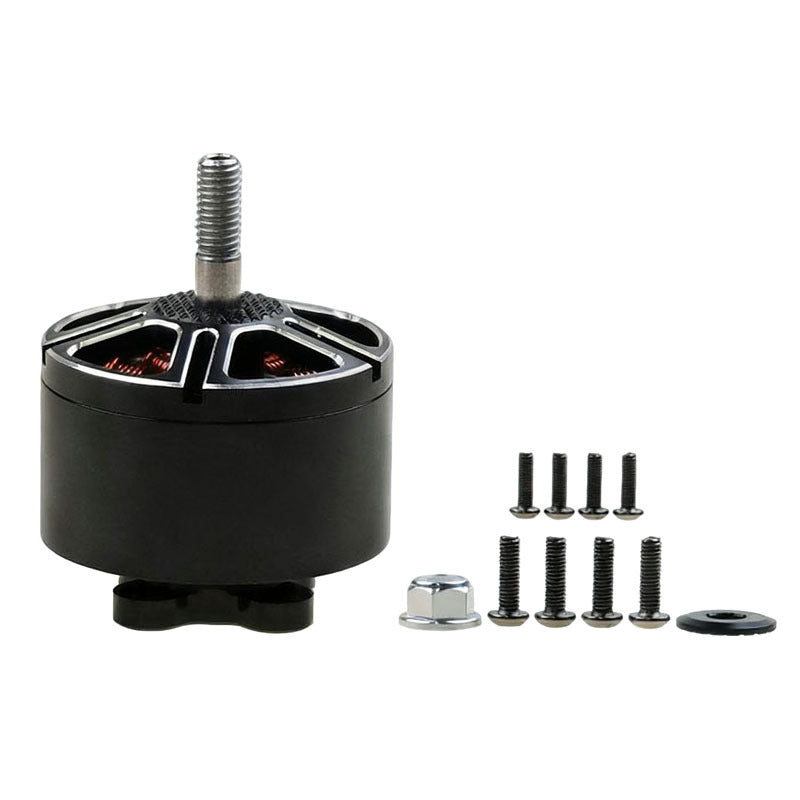

4 x 3215 880KV Brushless Motors
-
Accessories
🎯 Perfect For
-
10" FPV Racing Drones
-
10" Freestyle & Acrobatic Quads
-
Heavy-Lift Cinematography Platforms
-
6S–8S High-Performance Builds
-
Competition-Grade Multi-Rotors
-
Professional Aerial Work Platforms
🚀 Recommended Propeller & Battery Pairings
| Setup | Propeller | Battery | Best For |
|---|---|---|---|
| Lightweight Racer | 10" × 4.5" | 6S 1800mAh | Maximum speed and agility |
| Freestyle Power | 10" × 5" | 6S 2200mAh | Aggressive tricks and punch-outs |
| Heavy-Lift / Cinematic | 10" × 5.5" | 8S 2200mAh | Maximum thrust for camera rigs |
| Endurance Cruising | 10" × 4" | 6S 3000mAh | Extended flight times with stable hover |
Propeller and battery selection should be tuned based on your specific airframe and flight style.
⚠️ Important Notes
-
Recommended ESC: ≥ 50A continuous (with active cooling recommended for racing applications).
-
Propeller range: 10" diameter optimized; 9"–10.5" acceptable with appropriate tuning.
-
Batteries and propellers are not included.
-
Always allow motors to cool between race heats for maximum performance and lifespan.
-
Ensure your frame supports 5mm shaft diameter and standard M3 mounting pattern.
Ready to dominate the 10" class? Add the 3215 Motor 4-Pack to your race rig today – and leave the competition in the dust!
