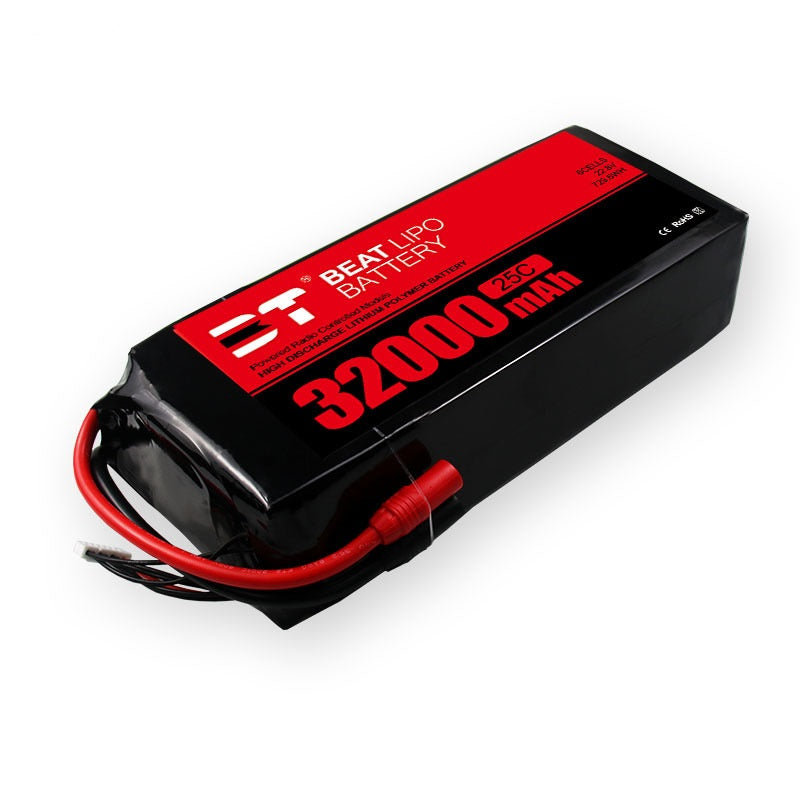

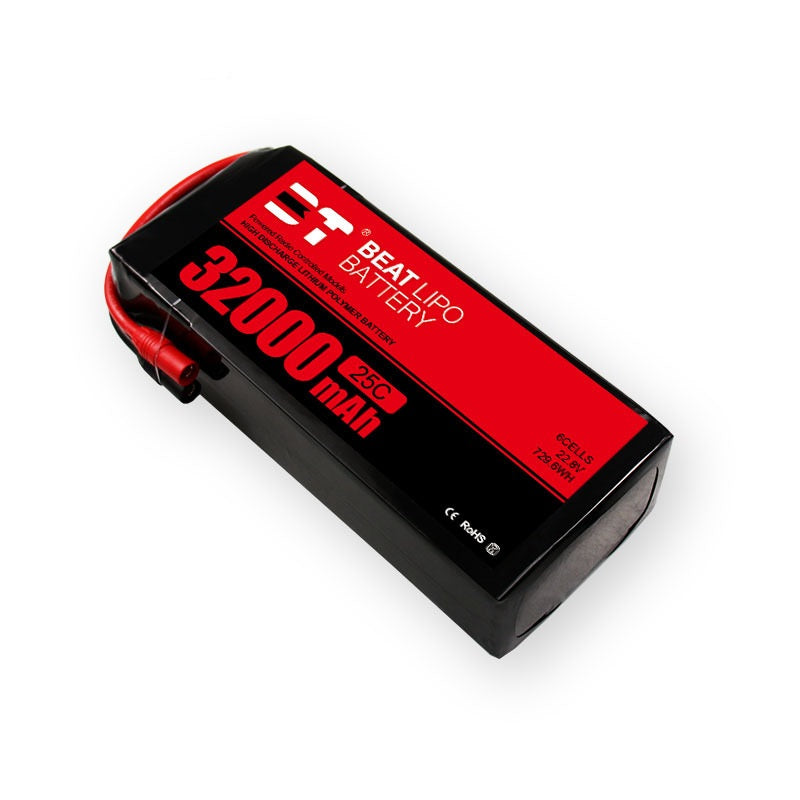

32000mAh 6S 22.8V 25C LiHV Battery – High-Capacity Solid-State Industrial Pack for Heavy-Lift UAVs (XT90 Anti-Spark)
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Power your heavy-lift industrial UAV with this 32000mAh 6S 22.8V LiHV battery – featuring advanced solid-state high-rate polymer technology for exceptional energy density and reliable performance. Operating at 3.8V nominal per cell (4.35V fully charged), this high-voltage pack delivers a massive 32Ah capacity with 25C continuous discharge – providing sustained power for agricultural drones, aerial mapping, emergency response, and long-endurance surveillance missions. The 6S configuration ensures stable voltage output across the entire discharge cycle, backed by a durable 300+ cycle lifespan. Equipped with XT90 anti-spark connector for safe, high-current connections – preventing dangerous sparks during plug-in. With a 248x105x64mm footprint and weighing 3548g (3.55kg), it offers exceptional energy density for professional commercial operations.
| Specification | Detail |
|---|---|
| Cell Type | LiHV (High-Voltage LiPo) – 3.8V nominal / 4.35V full charge |
| Voltage (Nominal) | 22.8V (6S) |
| Voltage (Fully Charged) | 26.1V |
| Capacity | 32000mAh (32Ah) |
| Discharge Rate | 25C |
| Configuration | 6S1P |
| Cell Technology | Solid-state high-rate polymer |
| Cycle Life | 300+ cycles |
| Charge Voltage | 4.35V per cell – ⚠️ LiHV charger required |
| Charge Current | 16 – 32A (0.5-1C, recommended) |
| Weight | 3548g (3.55kg) |

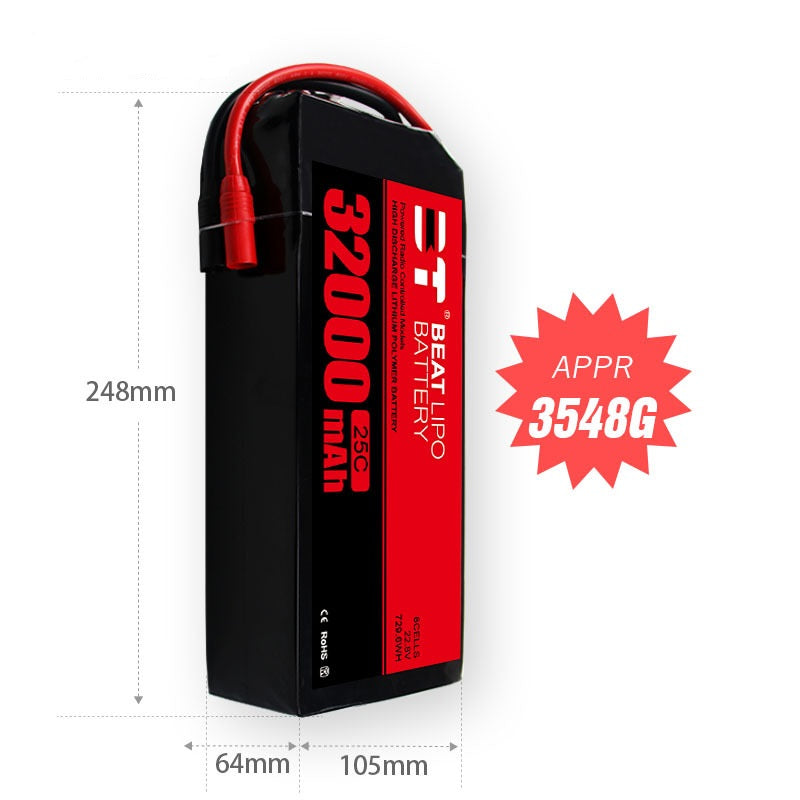

| Dimensions | 248 x 105 x 64 mm |
| Connector | XT90 Anti-Spark – spark suppression for safe high-current connection |
⚠️ LiHV Battery Notice – This is a High-Voltage LiPo (LiHV) battery. It requires a LiHV-compatible charger set to 4.35V per cell mode. Do NOT charge with a standard LiPo charger (4.2V) – this will result in undercharging and significantly reduced performance. Always use a balance charger. Never exceed 4.35V per cell. Charge at 16-32A (0.5-1C) for optimal lifespan – ensure your charger supports this current. The XT90 anti-spark connector provides spark-free connection – allow the resistor to engage before full insertion. Store at storage voltage (3.8V/cell) in a fireproof location. For commercial operators – ensure all personnel are trained in high-capacity LiHV safety protocols.
