Heavy-Lift Authority – Power for 9"–10" Multi-Rotor Platforms

Engineered for demanding aerial applications, the 3115 Brushless Motor 4-Pack delivers the muscle to carry heavy payloads, professional camera gear, or oversized FPV rigs. Available in 600KV and 900KV variants, this motor supports an ultra-wide voltage range (6V–36V) – making it equally capable on 6S, 8S, 10S, or even 12S setups. Whether you're building a heavy-lift hexacopter, a cinematography quad, or a large-scale FPV cruiser, the 3115 provides reliable, high-torque performance.

---

🔧 Key Specifications

---

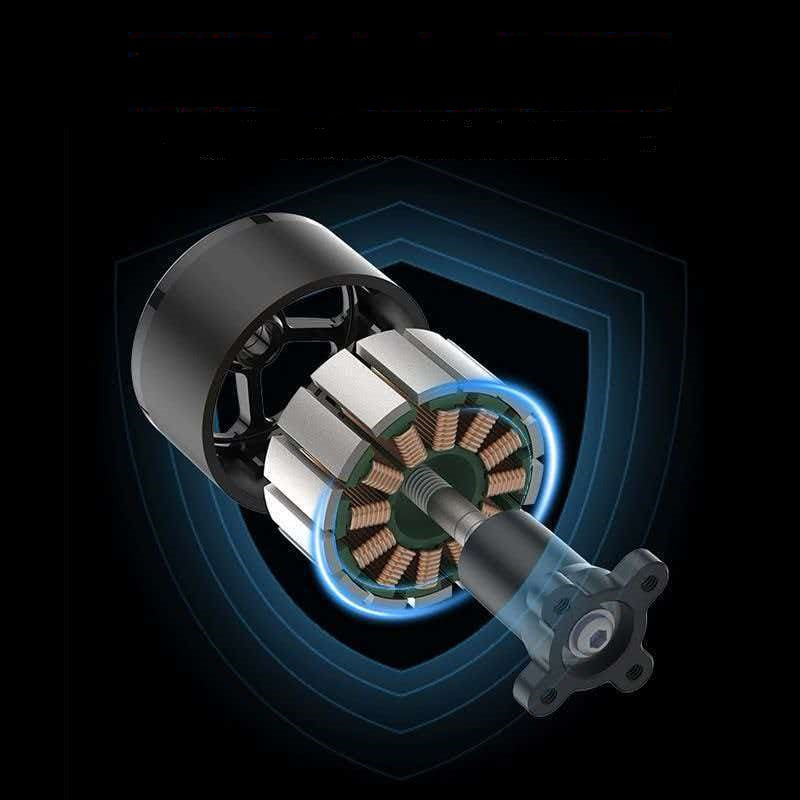

🏗️ Premium Build for Professional-Grade Reliability

• 6061-T6 Aerospace Aluminum Housing – CNC-machined for precise tolerances and superior heat management during extended operations.

• 220°C High-Temperature Copper Windings – Maintains performance integrity even under continuous heavy loads.

• N52H Neodymium Magnets – Industry-leading magnetic strength delivers outstanding torque density across the entire RPM range.

• Dual 685 Bearings – Engineered for smooth rotation and long-term durability in high-vibration environments.

---

⚡ Choose Your KV – Match Your Mission

Both variants feature the same robust construction – select KV based on your battery configuration and propeller size preference.

---

🚀 Performance That Carries Weight

• Ultra-Wide Voltage Range (6V–36V) – Unmatched flexibility to run 2S through 12S batteries, adapting to any build from 6" to 12" platforms.

• Massive Torque (up to 8 N·mm) – Effortlessly swings 9"–10" propellers with authority, delivering smooth throttle response and stable hover control.

• Up to 1,043W Peak Power (900KV) – On-demand thrust for aggressive climbs, rapid repositioning, and heavy payload management.

• 60mΩ Low Internal Resistance – Minimizes heat generation and energy loss for cooler operation and longer flight sessions.

• 18AWG Silicone Wires (250mm) – Heavy-gauge leads with generous length for clean routing on large airframes.

• 5mm Steel Shaft – Built to withstand the increased gyroscopic forces and weight of large propellers.

---

📦 What's Included

• 4 x 3115 Brushless Motors (choose 600KV or 900KV)

• Accessories

---

🎯 Perfect For

• 9"–10" Heavy-Lift Multi-Rotors

• Cinematography & Aerial Photography Drones

• Professional Surveying & Mapping UAVs

• Large-Scale FPV Freestyle & Cruisers

• Hexacopter & Octocopter Builds

• Agricultural & Industrial Drone Platforms

---

⚠️ Important Notes

• Recommended ESC: ≥ 40A for 600KV, ≥ 50A for 900KV (continuous rating).

• Propeller selection: 9"–10" diameter recommended. Always balance props for vibration-free operation.

• Battery not included. Check your ESC's voltage rating before using 10S–12S configurations.

• Allow motor cooling between intensive flight sessions.

---

Scale up your drone's capabilities – order the 3115 Motor 4-Pack today and carry heavier, fly farther, and perform with professional-grade confidence!
