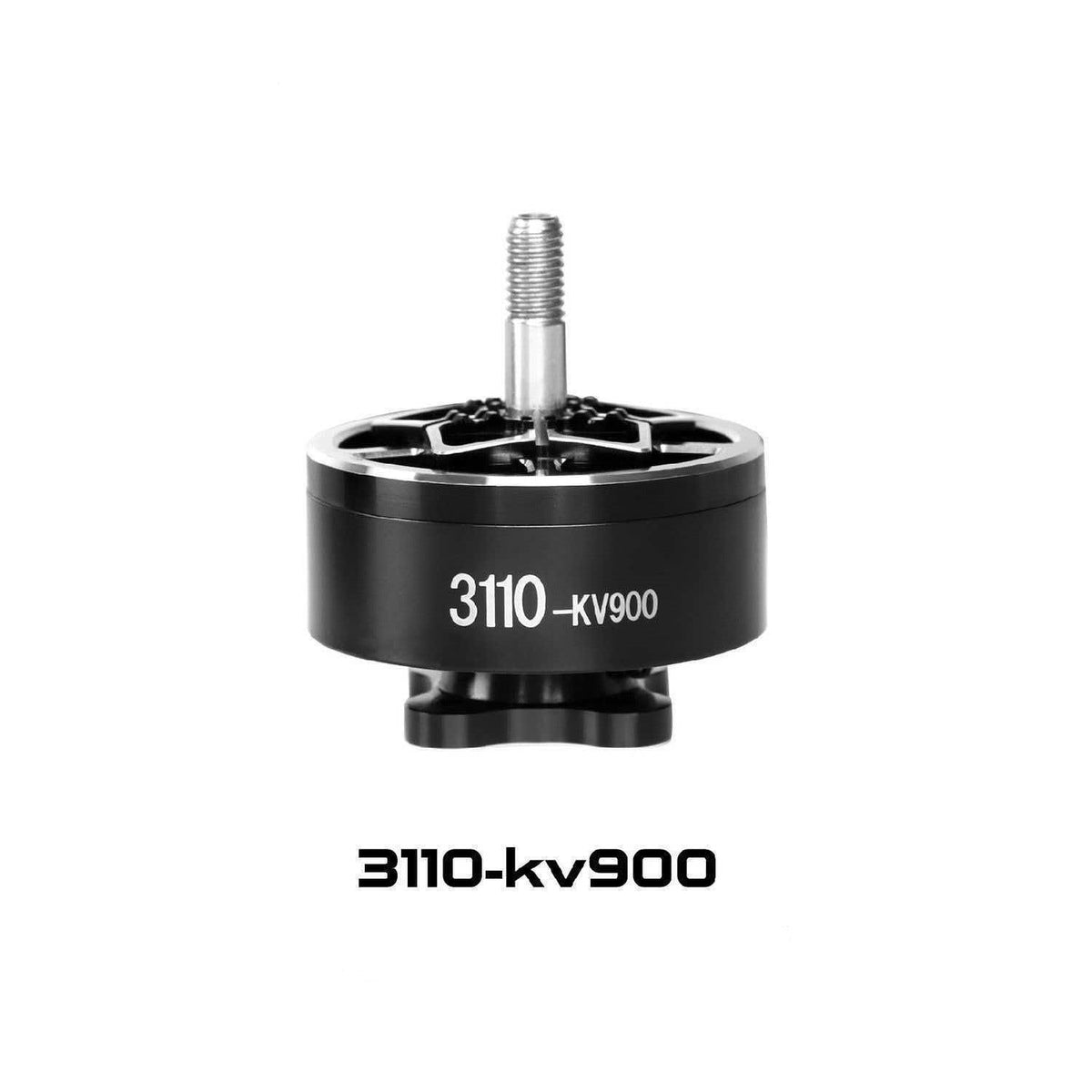

3110 900KV Brushless Motor 4-Pack – 9"–10" FPV Heavy-Lift Motor, 1425W 6S High-Efficiency with N52H Magnets & 5mm Shaft
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Compact Powerhouse – 1425W of 6S Heavy-Lift Performance
Meet the 3110 900KV Brushless Motor 4-Pack – a high-efficiency, high-torque powerplant purpose-built for 9"–10" multi-rotor platforms. With a compact Φ32mm footprint and an impressive 1,425W peak output, this motor delivers exceptional thrust-to-weight ratio for professional cinematography drones, heavy-lift FPV rigs, and industrial UAV applications. Optimized for 6S LiPo, it offers the perfect balance of power, efficiency, and reliability.
🔧 Key Specifications
| Parameter | Detail |
|---|---|
| Model | 3110F-900KV |
| Slot/Pole Count | 12N/14P |
| Dimensions | Φ32mm × 40.3mm |
| Rated Voltage | 6S LiPo (22.2V) |
| No-Load Speed | 7,000 – 13,600 RPM |
| Rated Power | Up to 1,425W |
| Shaft Diameter | 5mm |
| Silicone Wire | 18AWG / 250mm |
| Weight per Motor | 120g |
| Package | 4 Motors + Accessories |
🏗️ Premium Materials – Engineered for Endurance
-
6061-T6 Aerospace Aluminum Housing – Precision-CNC-machined housing ensures optimal heat dissipation and structural integrity under sustained heavy loads.
-
220°C High-Temperature Copper Windings – Maintains peak performance even during extended full-throttle climbs and payload-heavy maneuvers.
-
N52H Neodymium Magnets – The strongest magnet grade available, delivering superior magnetic flux for maximum torque and efficiency.
-
Dual 685 Bearings – Precision bearings provide silky-smooth rotation and exceptional durability in high-vibration environments.
⚡ Why Choose the 3110 900KV?
| Feature | Benefit |
|---|---|
| 1,425W Peak Power | Explosive thrust for heavy payloads, rapid climbs, and aggressive freestyle on 9"–10" props |
| Compact Φ32mm × 40.3mm Design | Fits tight frames while delivering big-motor performance – ideal for clean, low-profile builds |
| 6S Optimized | Perfectly matched to 6S battery systems for superior efficiency, lower current draw, and longer flight times |
| 12N/14P Magnetic Architecture | Smooth cogging, instant throttle response, and quiet, vibration-free operation |
| 120g Robust Build | Substantial thermal mass for sustained high-power operation without overheating |
📦 What's Included
-
4 x 3110 900KV Brushless Motors
-
Accessories
🎯 Perfect For
-
9"–10" Cinematography & Aerial Photography Drones
-
Heavy-Lift FPV Freestyle Quads
-
Professional Surveying & Mapping UAVs
-
Agricultural & Industrial Drone Platforms
-
6S High-Performance Multi-Rotors
-
Long-Endurance Cruising Drones
🚀 Performance Snapshot (Recommended Setup)
| Propeller | Battery | Expected Thrust (per motor) | Best For |
|---|---|---|---|
| 9" × 4.5" | 6S 1500mAh | ~1,800g | Agility and responsiveness |
| 9" × 5" | 6S 1800mAh | ~1,950g | Balanced freestyle and endurance |
| 10" × 4.5" | 6S 2200mAh | ~2,100g | Maximum thrust for heavy payloads |
| 10" × 5" | 6S 2600mAh | ~2,250g | Long-range cruising and heavy-lift |
Thrust values are approximate and depend on specific propellers, battery condition, and environmental factors.
⚠️ Important Notes
-
Recommended ESC: ≥ 45A continuous (with adequate cooling) for optimal performance.
-
Propeller range: 9"–10" diameter. Always balance props to minimize vibration and maximize motor lifespan.
-
Batteries and propellers are not included.
-
Ensure proper motor mounting (M3 screw pattern) compatible with your frame.
Power your next heavy-lift project with the 3110 Motor 4-Pack – compact, powerful, and built for professional-grade reliability. Add to cart and take your 9"–10" build to the next level!
