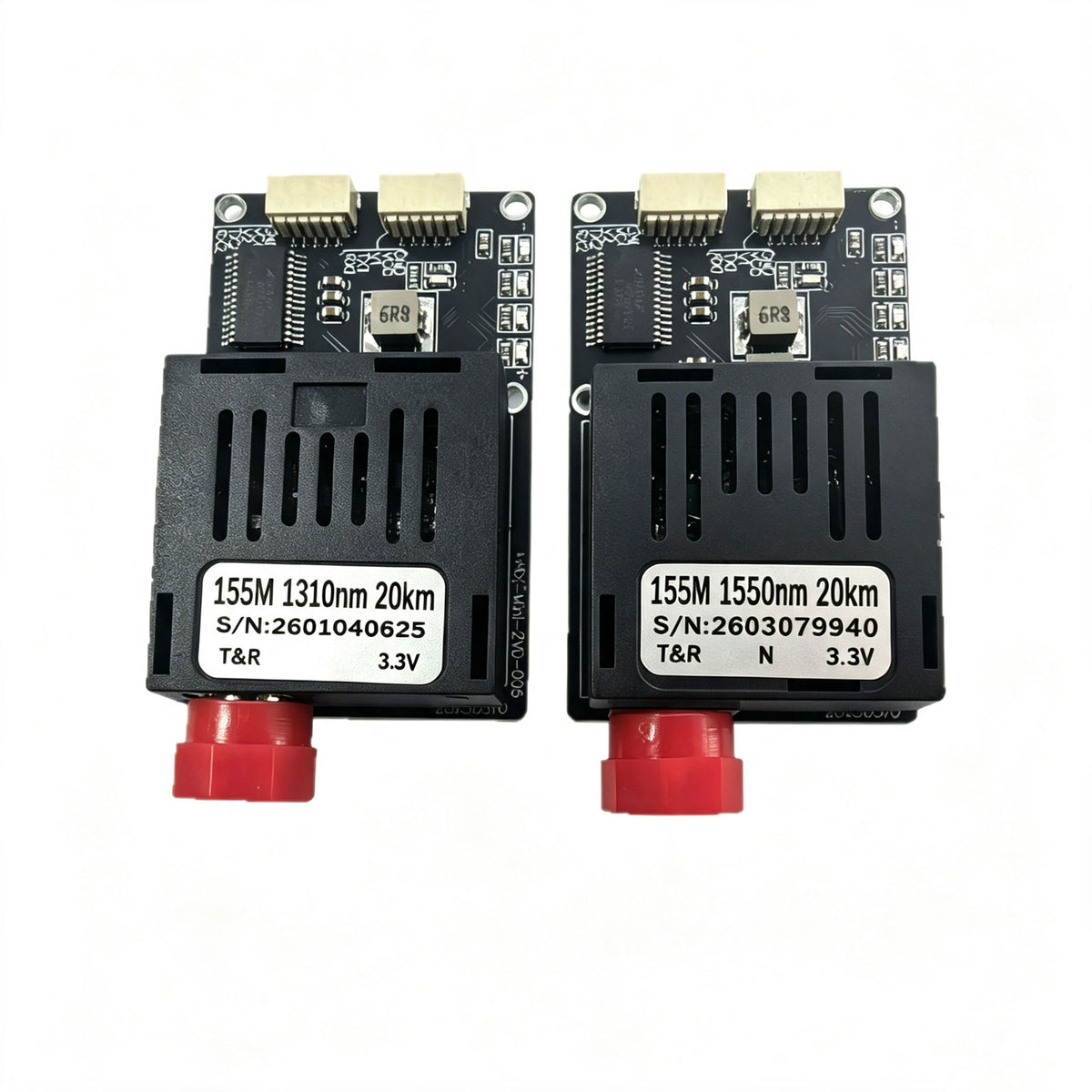

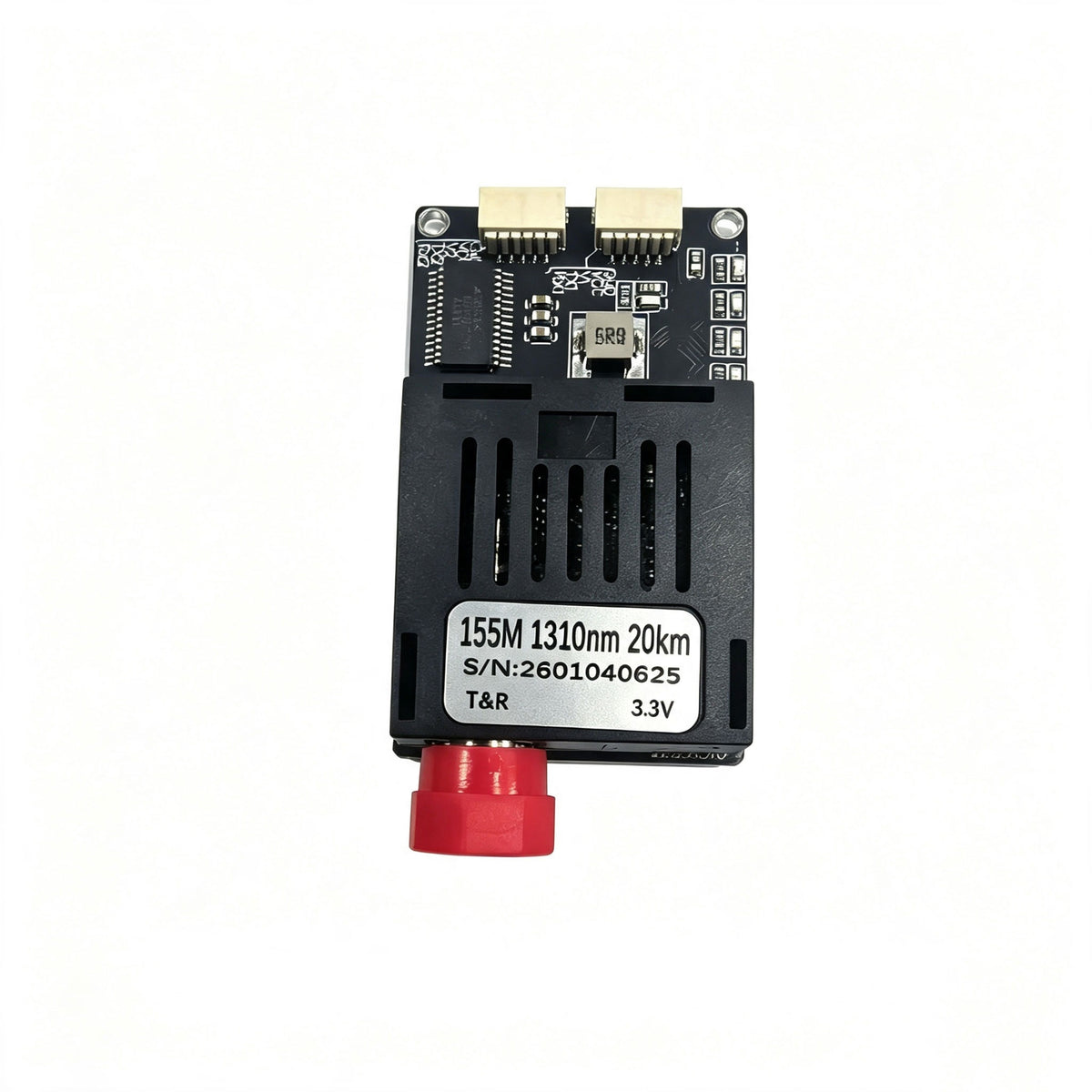

2-Channel TTL + 1080P Coaxial Video Optical Transceiver – 1V 2-Way TTL, BiDi, 20-100KM, Customizable
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
HD Video & Dual-Channel TTL Data – One Fiber, One Solution
This 2V-2路 TTL optical transceiver module integrates 1-channel 1080P coaxial video and 2-way TTL data transmission into a single fiber-optic link. Supporting distances from 20KM to 100KM with single-fiber bidirectional (BiDi) technology, it eliminates the need for separate video and data cables – simplifying your drone, robotic, or surveillance system wiring. Wavelengths are distance-optimized: 1310/1550nm for 20-60KM versions, and 1490/1550nm for 80-100KM versions. Featuring a black PCB board design and standard 1×9 pinout, this module is built for reliable, long-haul performance. Ideal for UAV gimbal video transmission, PTZ camera control, industrial inspection, and security surveillance where both high-definition video and real-time data need to travel over long distances.
📌 Customization Service: We support OEM/ODM customization including wavelength, transmission distance, optical interface type (FC/ST/SC/LC), operating temperature range (commercial/industrial), PCB dimensions, and pin definitions. Contact our sales team with your specific requirements.
| Feature | Highlight |
|---|---|
| 2-Way TTL + 1080P Video Combo | Integrates 1-channel coaxial 1080P HD video and 2-way TTL data into a single BiDi fiber link – no more separate video/data cables. |
| Single-Fiber BiDi Transmission | Full-duplex communication over a single fiber, cutting infrastructure costs and simplifying deployment. |
| Long-Distance Coverage | Available in 20KM, 40KM, 60KM (Standard & Aspheric), 80KM, and 100KM versions to fit diverse range requirements. |
| Distance-Optimized Wavelengths | 1310/1550nm for 20-60KM; 1490/1550nm for 80-100KM – tailored for optimum performance at each distance tier. |
| Coaxial Video Input | Standard coaxial interface for 1080P HD video – plug-and-play with most FPV cameras, gimbals, and surveillance cameras. |
| 1V TTL Logic Interface | 2-way TTL channels at 1V logic level for stable data transmission (PTZ control, telemetry, sensor data, etc.). |
| Black PCB Board | High-quality black PCB with robust soldering and reliable signal integrity for demanding environments. |
| Flexible Optical Interface | Available with FC, ST, SC, or LC connectors to suit various fiber patch panel requirements. |
| OEM/ODM Customization Available | Custom wavelengths, distances, connectors, temperature ranges, PCB sizes, and pinouts – contact us to discuss your needs. |
