1500TVL FPV Camera Module W5010 – 1/1.8" Sensor, 125° FOV, Super WDR, 5V-36V Wide Voltage
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Ultra-Clear Vision for Your FPV Drone
Equipped with a 1/1.8-inch large sensor and 1500TVL resolution, the DL-W5010 delivers stunning image clarity. Featuring a 125° wide-angle 3mm lens and Super WDR (HDR), it ensures perfect exposure even when flying from bright sunlight into dark shadows. With an ultra-low illumination of 0.00001Lux and 3D DNR, this camera provides crystal-clear transmission in low-light conditions. Fully OSD tunable (Ratio, TV System, Backlight, Video Settings) and supporting 5V-36V wide power input, it is the ultimate upgrade for professional racing and cinematic FPV drones.
| Feature | Highlight |
|---|---|
| High-Definition Imaging | 1/1.8" large sensor with 1500TVL resolution for exceptional detail and color reproduction. |
| Wide Field of View | 3mm lens with 125° FOV, perfect for capturing expansive aerial views while maintaining low distortion. |
| Intelligent Wide Dynamic | Super WDR (HDR) handles high-contrast scenes, preventing overexposed skies and underexposed ground. |
| Extreme Low-Light Performance | Minimum illumination of 0.00001Lux with 3D Noise Reduction (NR) ensures clear footage even during dusk or cloudy days. |
| Full OSD Customization | Easily adjust Aspect Ratio (4:3/16:9), TV System (PAL/NTSC), Backlight (Auto/Color/B&W), and Video Settings (Contrast/Sharpness/Saturation) via OSD. |

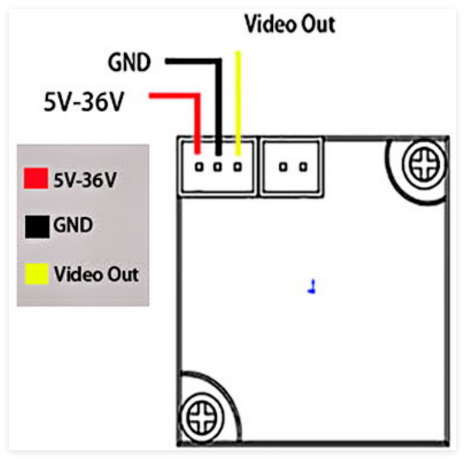

| Wide Voltage Compatibility | Supports DC 5V-36V input, making it compatible with 1S to 8S LiPo batteries without the need for a separate BEC. |

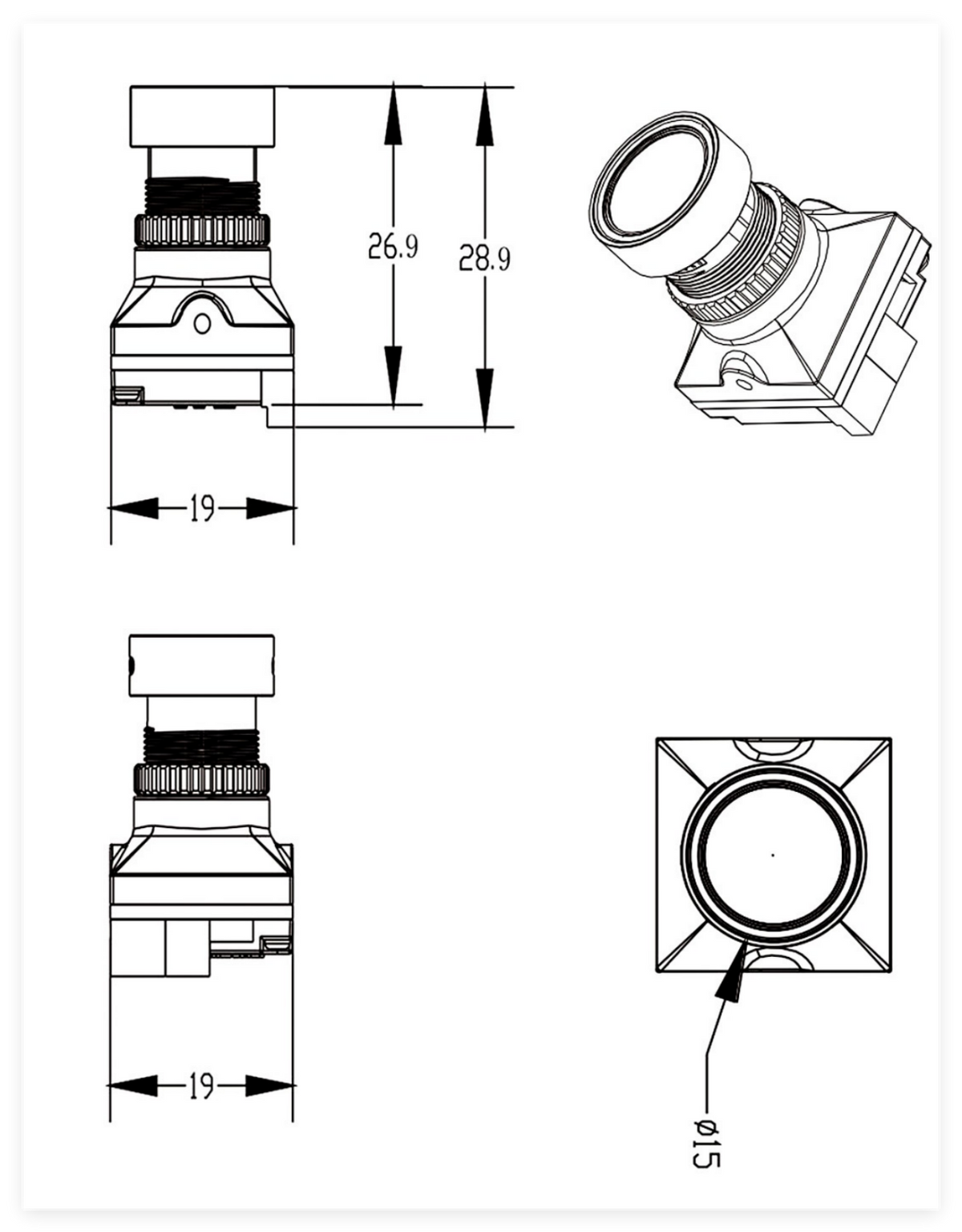

| Lightweight & Durable | Weighing only 8.0g with compact dimensions 19x19x28.9mm, ideal for micro, racing, and cinewhoop drones. |
| Plug-and-Play | Standard CVBS video output interface for easy integration with most VTX (Video Transmitters). |
