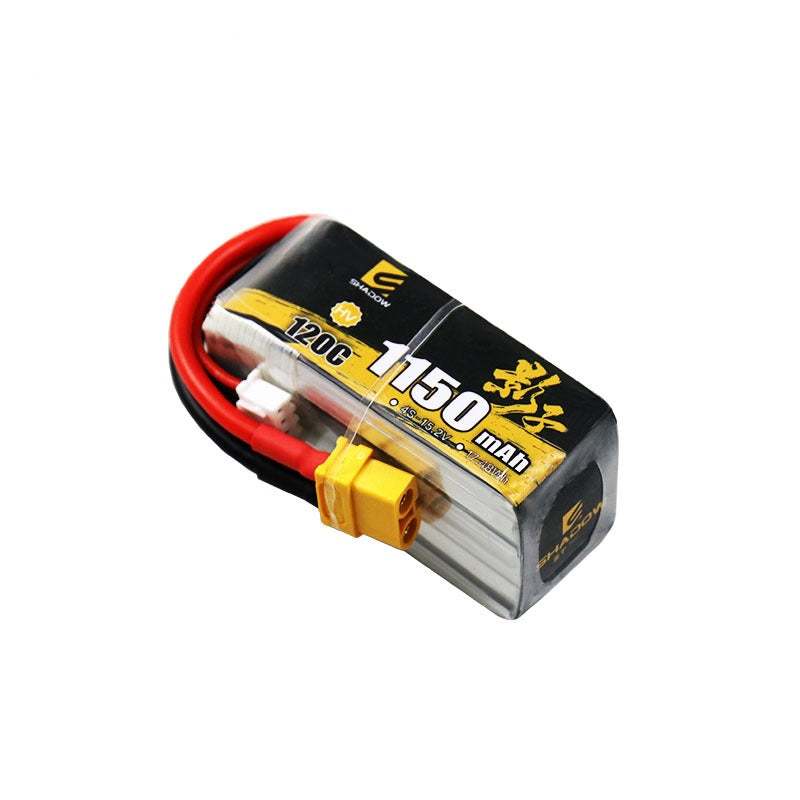

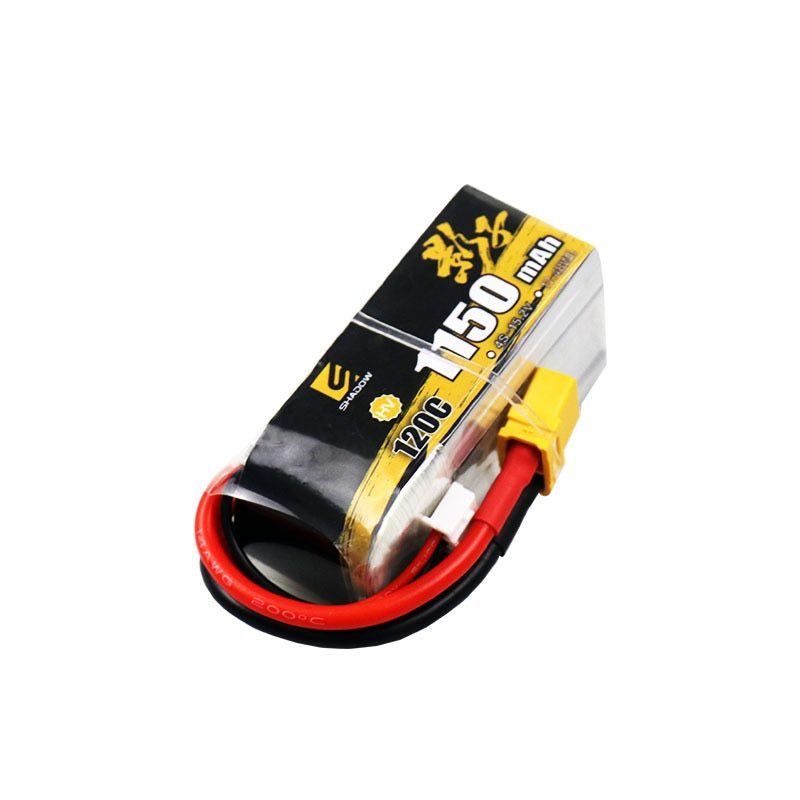

1150mAh LiHV Battery Series – 2S-6S 120C High-Voltage Packs for FPV Drones & Mini RC (XT30)
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Unlock next-level performance with this 1150mAh LiHV (High-Voltage LiPo) battery series. Engineered for FPV drones and mini RC racers, these 120C high-rate polymer packs deliver explosive power with a higher nominal voltage of 3.8V per cell (4.35V fully charged) – providing superior thrust, faster throttle response, and extended flight times compared to standard 4.2V LiPo packs. Available in 2S (7.6V), 3S (11.4V), 4S (15.2V), and 6S (22.8V) configurations to match your build. All versions feature the lightweight XT30 connector and a compact 60x24mm footprint, with weights ranging from just 50g to 138g. 2S1P / 3S1P / 4S1P / 6S1P configurations with a proven 300+ cycle life.
| Specification | 2S Version | 3S Version | 4S Version | 6S Version |
|---|---|---|---|---|
| Voltage (Nominal) | 7.6V | 11.4V | 15.2V | 22.8V |
| Voltage (Fully Charged) | 8.7V | 13.05V | 17.4V | 26.1V |
| Configuration | 2S1P | 3S1P | 4S1P | 6S1P |
| Capacity | 1150mAh | 1150mAh | 1150mAh | 1150mAh |
| Discharge Rate | 120C | 120C | 120C | 120C |
| Weight | 50g | 72g | 95g | 138g |

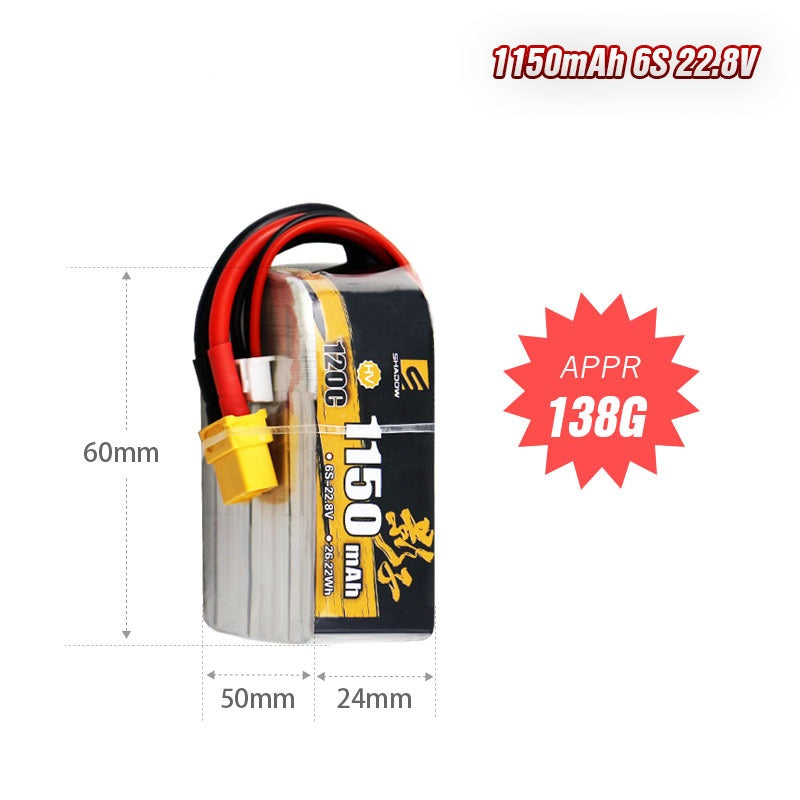

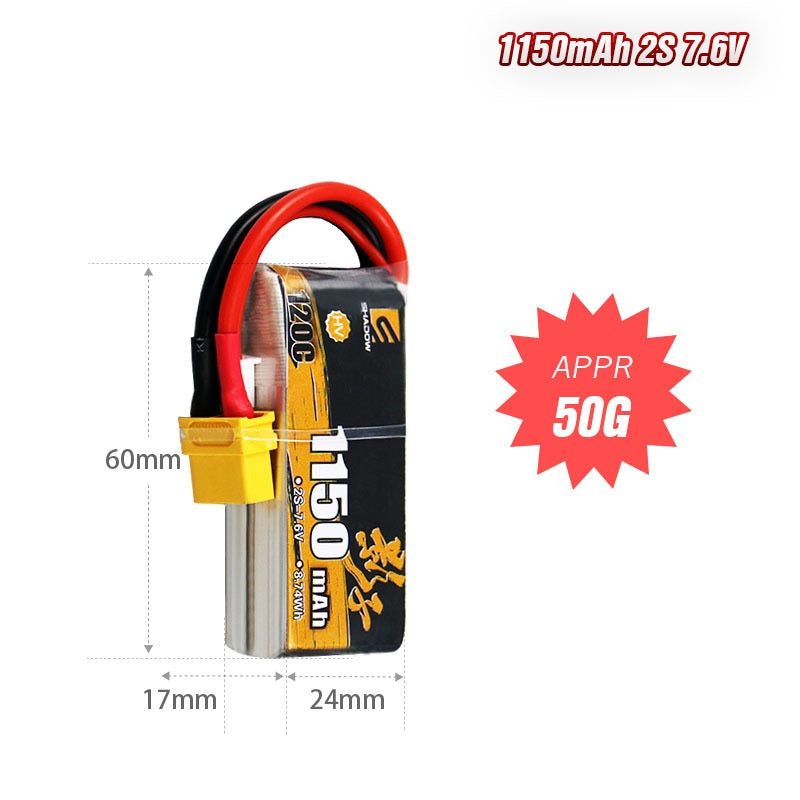

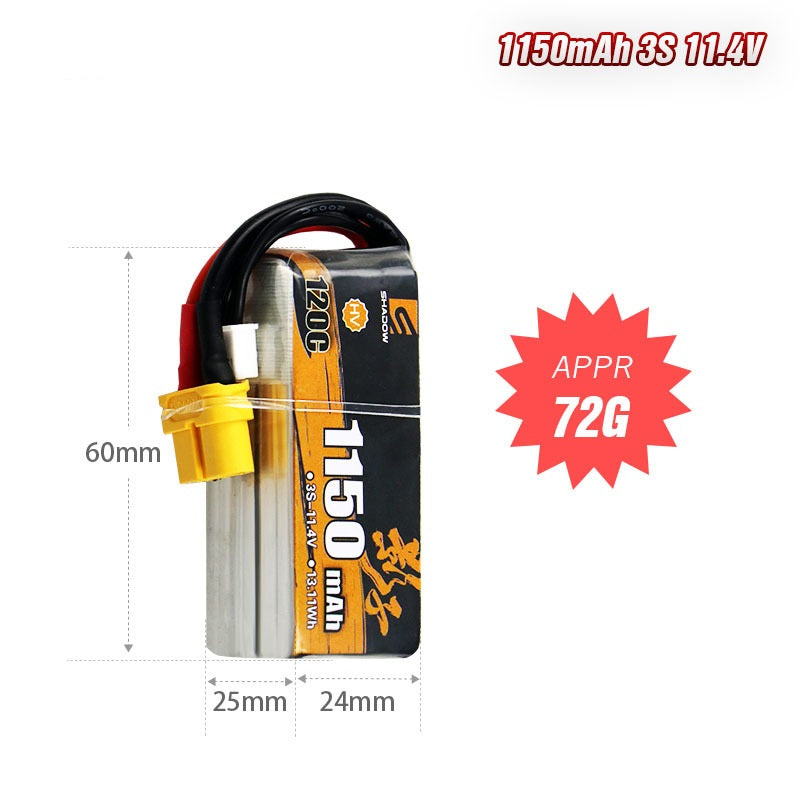

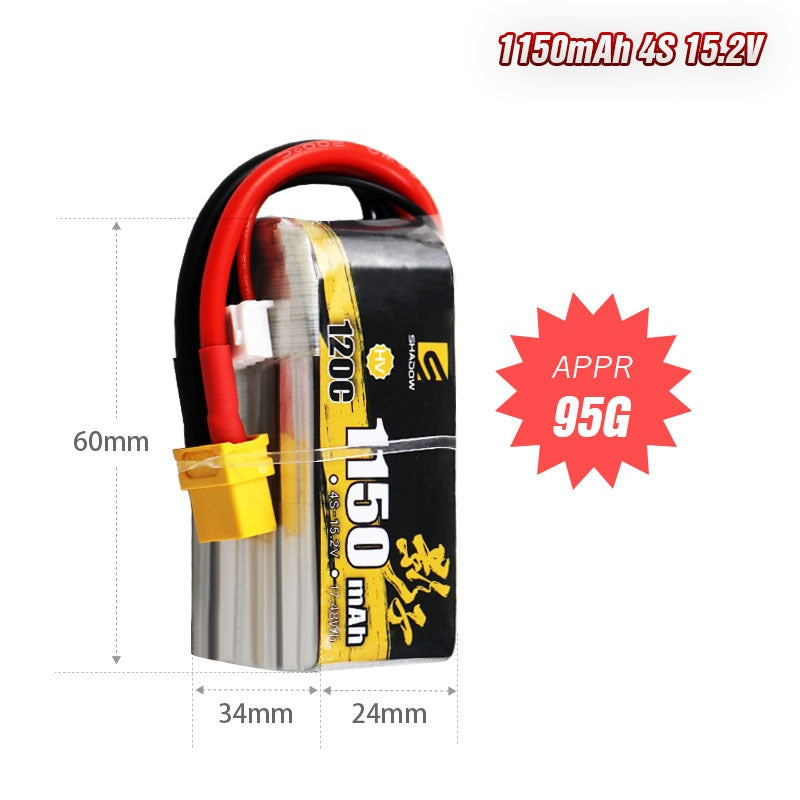

| Dimensions | 60 x 24 x 17mm | 60 x 24 x 25mm | 60 x 24 x 34mm | 60 x 24 x 50mm |
| Connector | XT30 | XT30 | XT30 | XT30 |
| Charge Voltage | 4.35V/cell | 4.35V/cell | 4.35V/cell | 4.35V/cell |
| Cycle Life | 300+ | 300+ | 300+ | 300+ |
⚠️ LiHV Battery Notice – This is a High-Voltage LiPo (LiHV) battery. It requires a LiHV-compatible charger set to 4.35V per cell mode. Do NOT charge with a standard LiPo charger (4.2V) – this will result in undercharging and reduced performance. Always use a balance charger. Never exceed 4.35V per cell. Charge at 1C (1.15A) for optimal lifespan. Store at storage voltage (3.8V/cell) in a fireproof bag.
