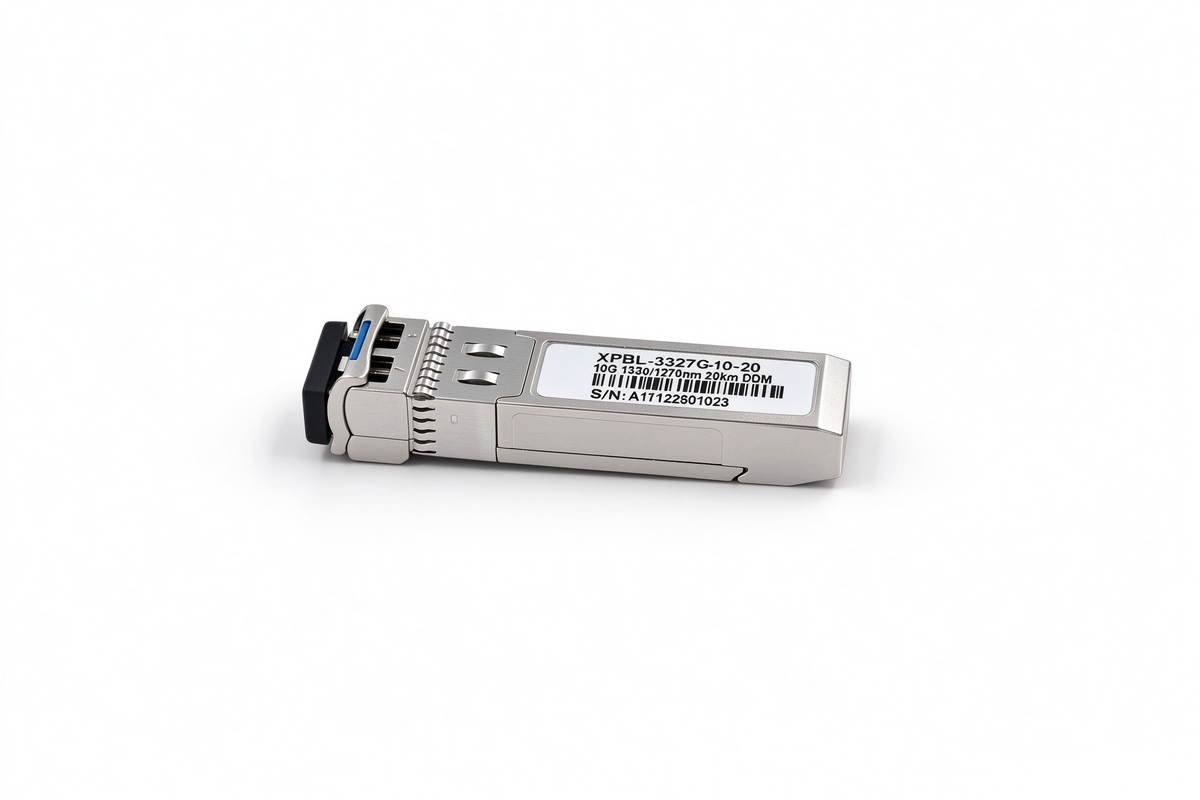

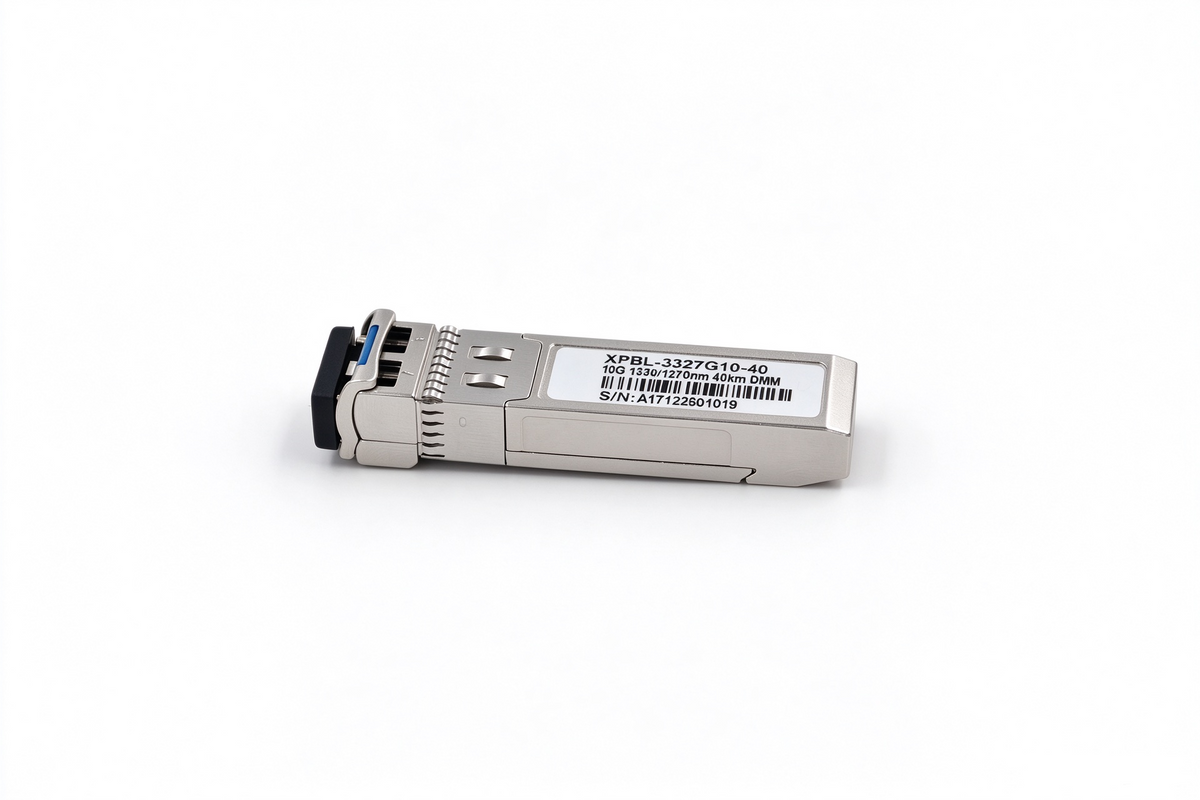

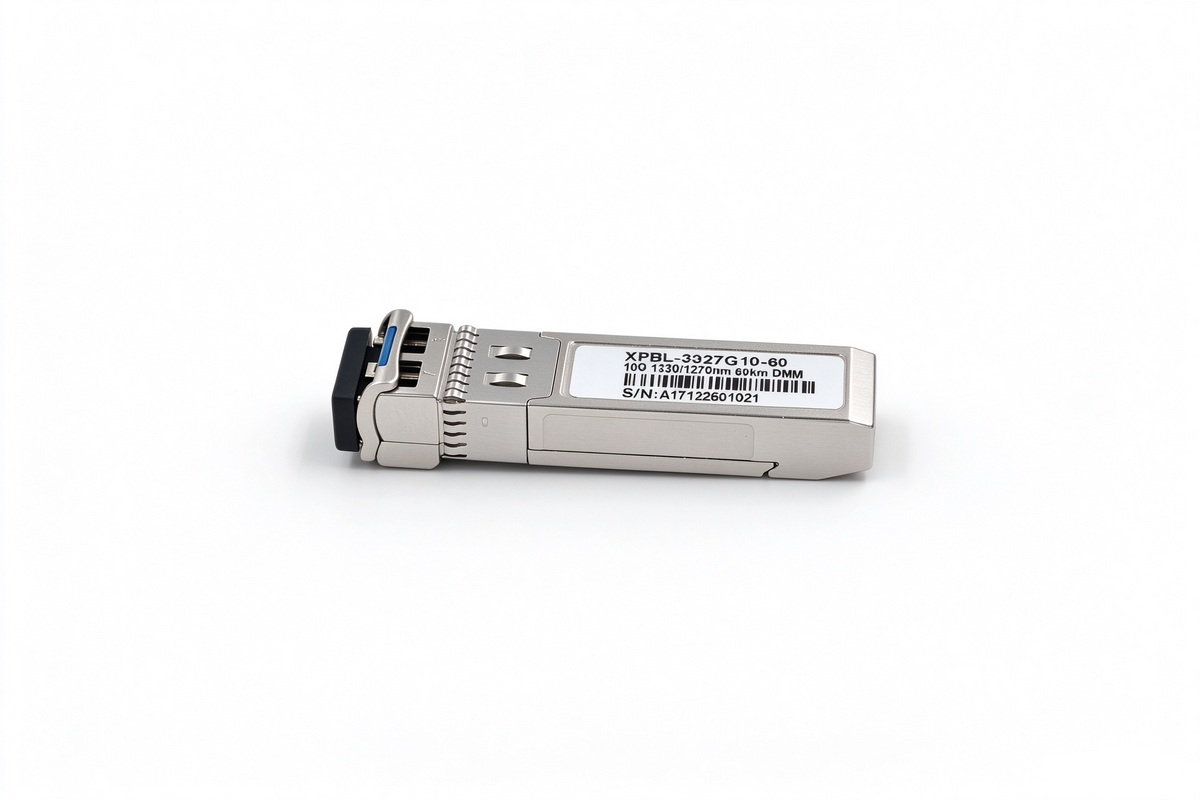

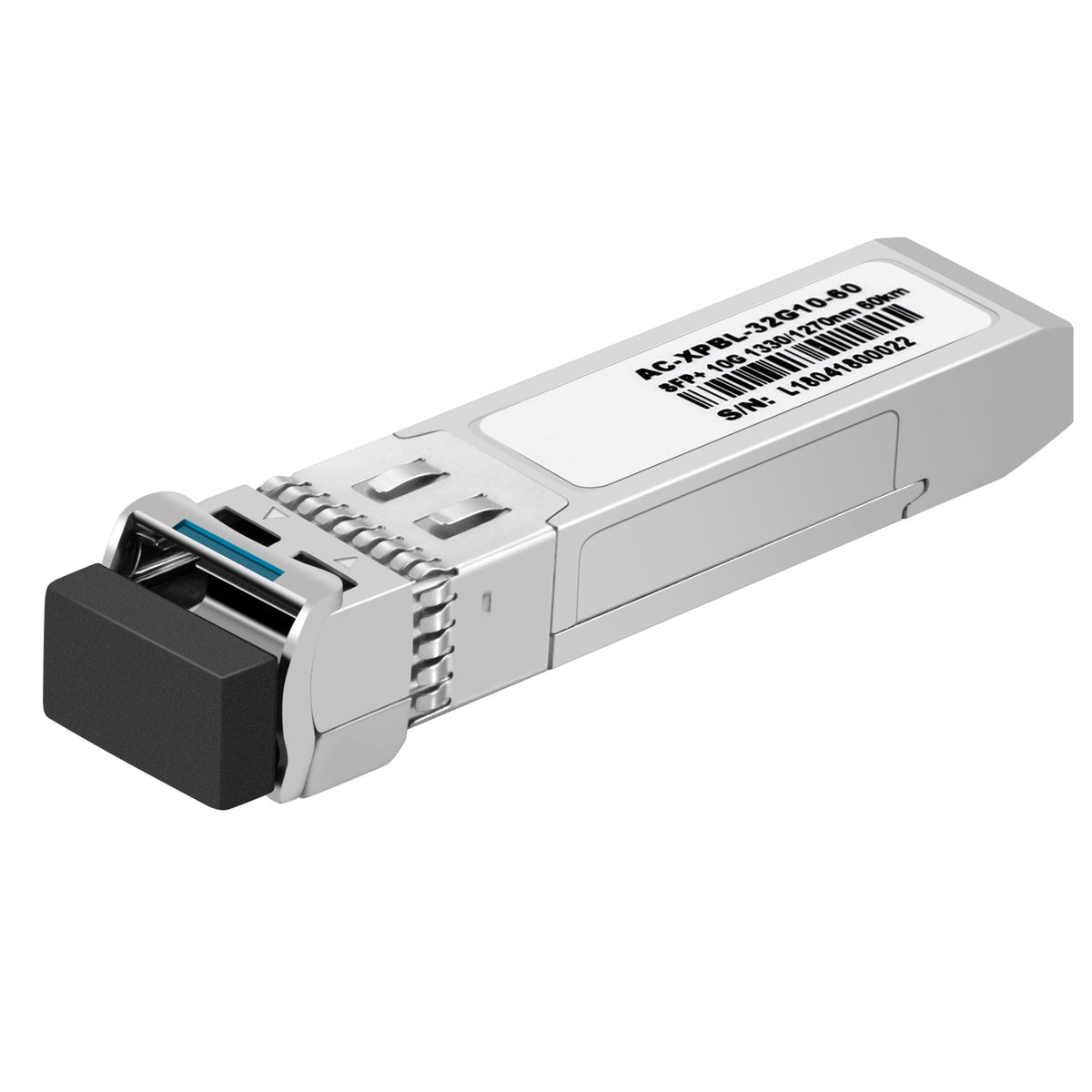

This 10G SFP+ BIDI transceiver operates over single-mode fiber using 1330nm / 1270nm wavelengths in a bi-directional (single-fiber) configuration, supporting 20km / 40km / 60km reach options for 10 Gigabit Ethernet applications. It is compliant with SFP+ MSA, SFF-8472, and SFF-8431 standards, featuring hot-pluggable design, integrated digital diagnostics monitoring (DDM) via 2-wire serial interface (I²C), Single LC connector, and low power dissipation < 1.5W. Single +3.3V power supply, RoHS compliant. Available in Commercial (0~70°C) and Industrial (-40~85°C) temperature versions.

Optical Specifications:

• Data Rate: up to 10.7Gbps

• Wavelength: 1330nm / 1270nm (BIDI pair — TX 1330nm / RX 1270nm)

• TX: DFB

• RX: 20km / 40km: PIN; 60km: APD

• TX Power: 20km: -3~2dBm; 40km / 60km: 0~5dBm

• RX Sensitivity: 20km / 40km: < -15dBm; 60km: < -20dBm

Compatible with Cisco, Huawei, ZTE, Mikrotik and other mainstream brands.

Customization Welcome: We accept customer customization — including wavelength pairing (1330/1270), reach option, temperature grade, compatibility coding, labeling, and packaging — to meet your specific deployment and branding requirements. Contact us for custom orders.

BIDI Pairing Note: BIDI modules must be used in matched pairs — this unit (TX 1330nm / RX 1270nm) pairs with the opposite unit (TX 1270nm / RX 1330nm). Please confirm the wavelength direction required for each end of your link when ordering.
