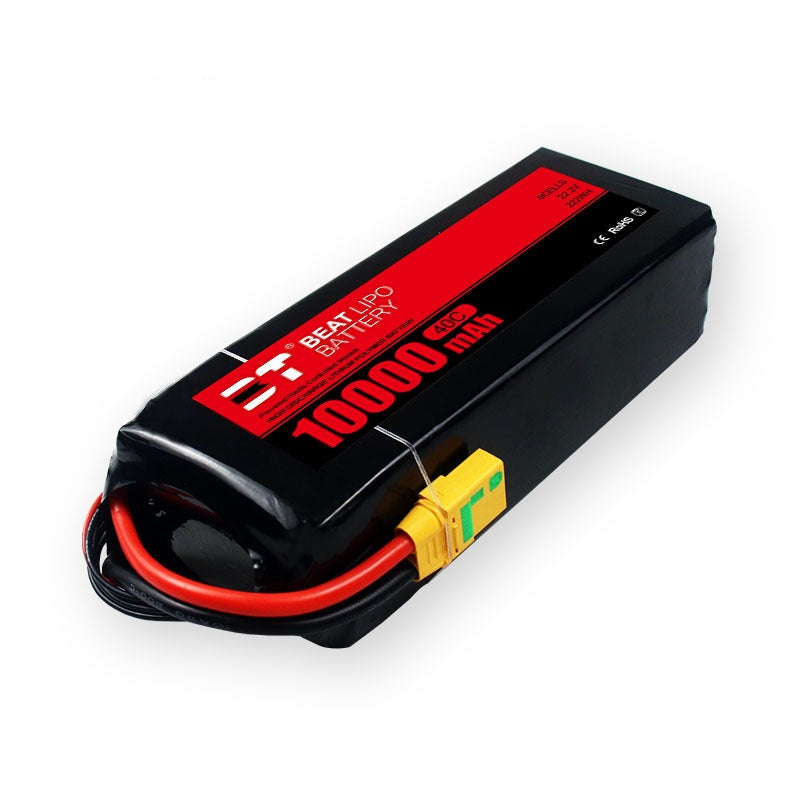

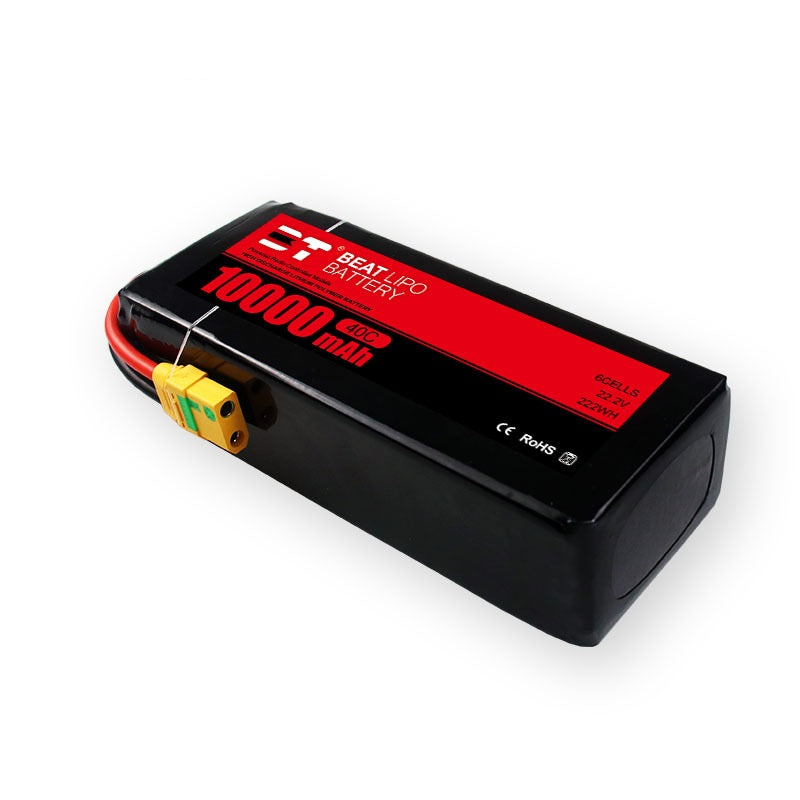

10000mAh 40C LiPo Battery Pack – 4S / 6S / 8S for 10" FPV X-Class & Heavy-Lift Drones (XT90)
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Power your heavy-lift FPV platform with the 10000mAh 40C high-rate LiPo battery family. Engineered specifically for 10-inch and larger X-Class racing drones, long-endurance surveying UAVs, and heavy-payload cargo quads, this ultra-high-capacity pack delivers a sustained 40C discharge with a massive 10000mAh energy reserve – ensuring extended flight times without compromising on punch. Available in 4S (14.8V), 6S (22.2V), and 8S (29.6V) configurations to match your power system. All versions feature the heavy-duty XT90 anti-spark connector for safe, high-current connection. Built with matched 4S1P / 6S1P / 8S1P polymer cells and rated for 300+ reliable cycles.
| Specification | 4S Version | 6S Version | 8S Version |
|---|---|---|---|
| Voltage | 14.8V (4S) | 22.2V (6S) | 29.6V (8S) |
| Capacity | 10000mAh | 10000mAh | 10000mAh |
| Discharge Rate | 40C | 40C | 40C |
| Configuration | 4S1P | 6S1P | 8S1P |
| Cell Type | High-rate polymer | High-rate polymer | High-rate polymer |
| Cycle Life | 300+ | 300+ | 300+ |
| Charge Current | 10A (max) | 10A (max) | 10A (max) |
| Discharge Voltage | 3.6-4.2V/cell | 3.6-4.2V/cell | 3.6-4.2V/cell |
| Weight | 867g | 1250g | 1650g |

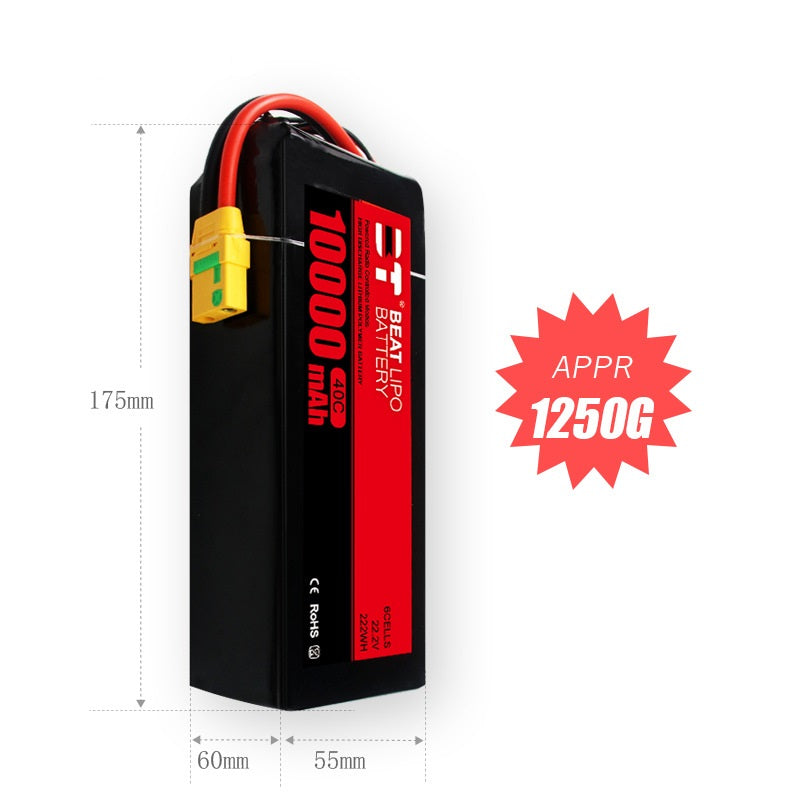

| Dimensions | 176 x 70 x 33 mm | 176 x 70 x 49 mm | 176 x 70 x 65 mm |
| Connector | XT90 (anti-spark) | XT90 (anti-spark) | XT90 (anti-spark) |
⚠️ High-Capacity LiPo Warning – Use a balance charger set to the correct cell count (4S/6S/8S). Never exceed 4.2V per cell. Charge at 10A max (1C rate recommended for best longevity). Always store in a fireproof LiPo bag. Inspect for puffing, damage, or loose leads before each use. The XT90 connector features anti-spark – ensure firm connection during plug-in.
