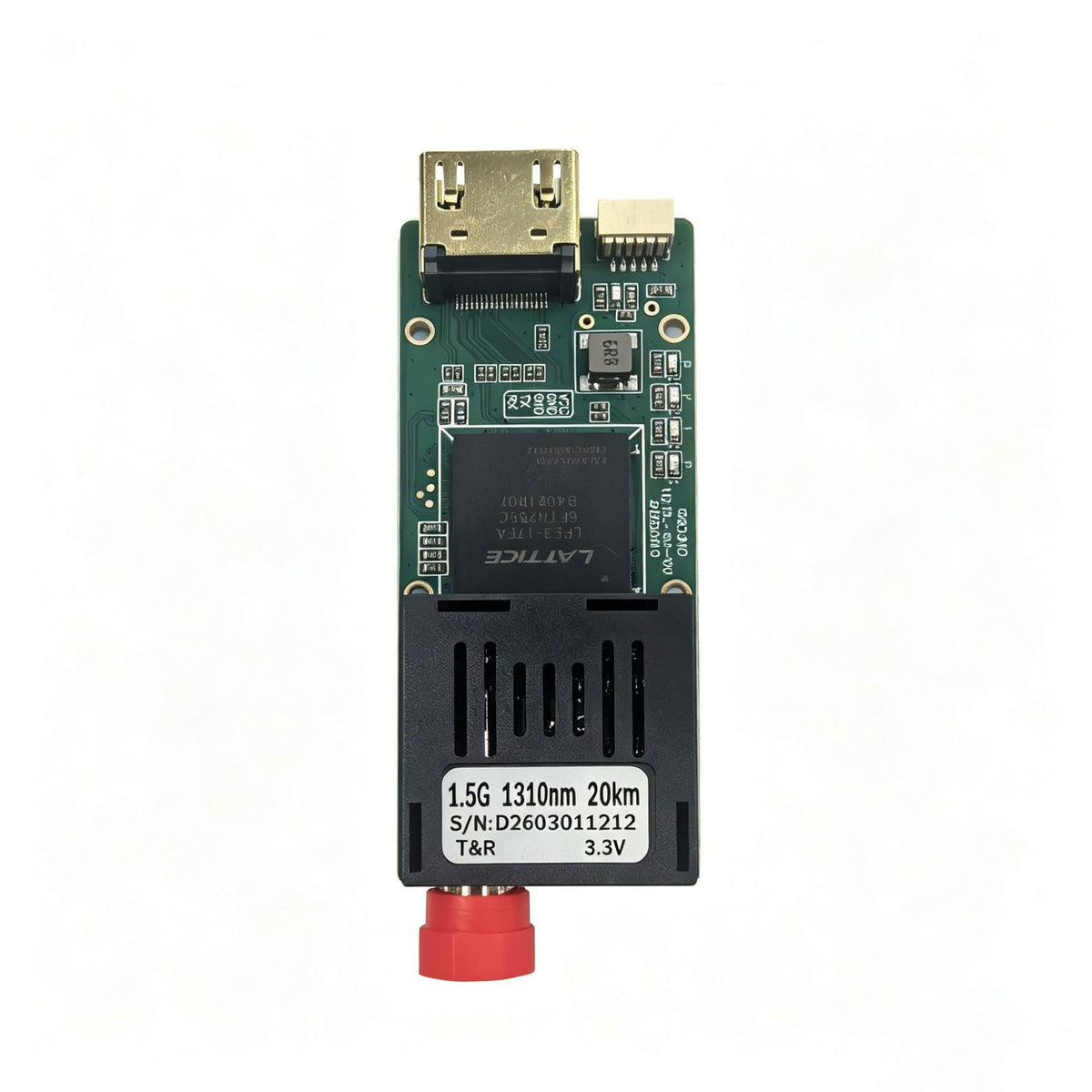

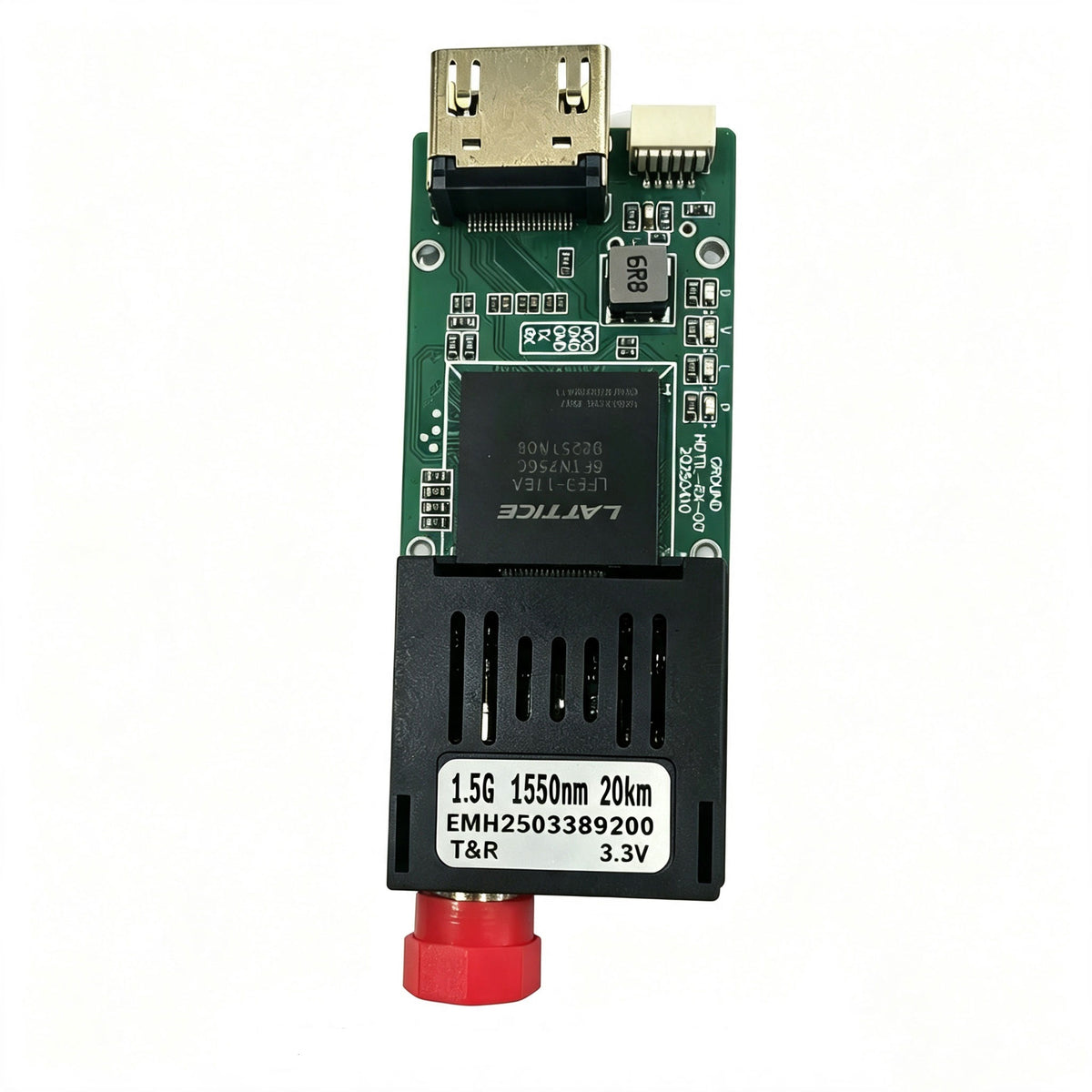

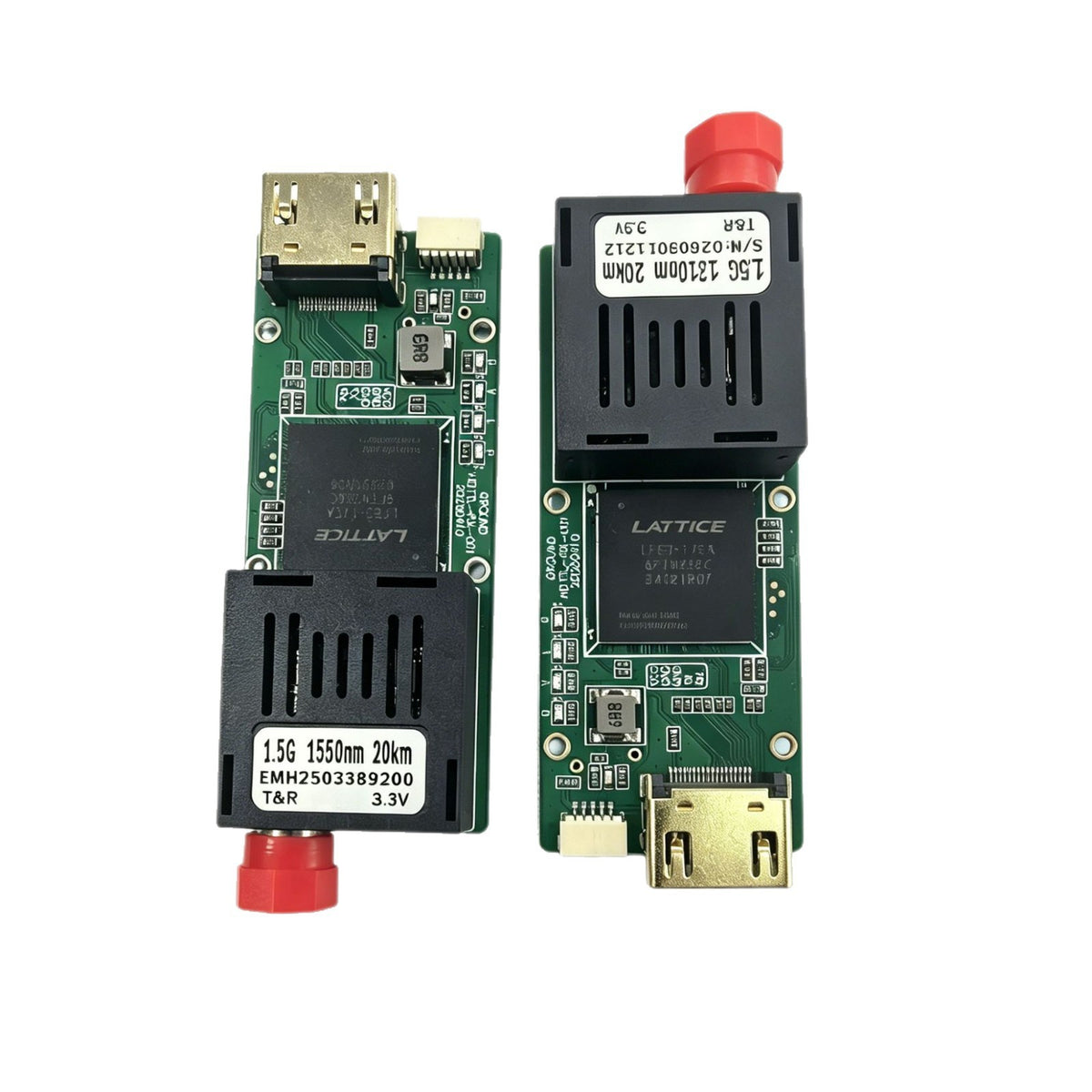

1-Channel HDMI + 1-Way TTL Optical Transceiver – BiDi, 20-60KM, 1×9, 1310/1550nm, Customizable
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
HDMI Video + TTL Data – One Fiber, Long-Distance AV Transmission
This 1-channel HDMI + 1-way TTL optical transceiver module transmits HDMI audio/video signals alongside TTL serial data over a single fiber-optic BiDi link. Supporting distances of 20KM, 40KM, and 60KM with unified 1310/1550nm wavelengths, it eliminates the need for separate HDMI cables, data lines, and signal boosters – greatly simplifying long-distance AV deployment. Featuring a standard 1×9 package, TTL logic interface, and single-fiber bidirectional technology, this module is ideal for remote video surveillance, digital signage, broadcast relay, medical imaging transmission, conference systems, and UAV/robotic video downlinks where both high-quality HDMI video and control data must travel over extended distances. The HDMI interface supports 1080P/720P/576P/480P video resolution with embedded audio transmission.
📌 Customization Service: We support OEM/ODM customization including wavelength, transmission distance, optical interface type (FC/ST/SC/LC), operating temperature range (commercial/industrial), PCB dimensions, and pin definitions. Contact our sales team with your specific requirements.
| Feature | Highlight |
|---|---|
| HDMI + TTL Combo | Transmits 1-channel HDMI audio/video and 1-way TTL data over a single BiDi fiber link – no more long HDMI cables or separate data lines. |
| Long-Distance Coverage | Available in 20KM, 40KM, and 60KM versions to suit diverse range requirements. |
| Unified Wavelengths | 1310/1550nm across all distances – simplifies inventory and system design. |
| High-Definition Video Support | HDMI interface supports 1080P, 720P, 576P, and 480P with embedded audio transmission. |
| Single-Fiber BiDi Transmission | Full-duplex communication over a single fiber, cutting infrastructure costs and simplifying deployment. |
| 1×9 Standard Package | Industry-standard 1×9 package for easy integration with existing systems. |
| TTL Logic Interface | Standard TTL logic level for seamless connection with industrial controllers, PTZ controls, and serial devices. |
| Plug-and-Play | Simple connectivity – just plug in HDMI source, TTL data, and fiber, then transmit up to 60KM. |
| Flexible Optical Interface | Available with FC, ST, SC, or LC connectors to suit various patch panel requirements. |
| OEM/ODM Customization Available | Custom wavelengths, distances, connectors, temperature ranges, PCB sizes, and pinouts – contact us to discuss your needs. |
