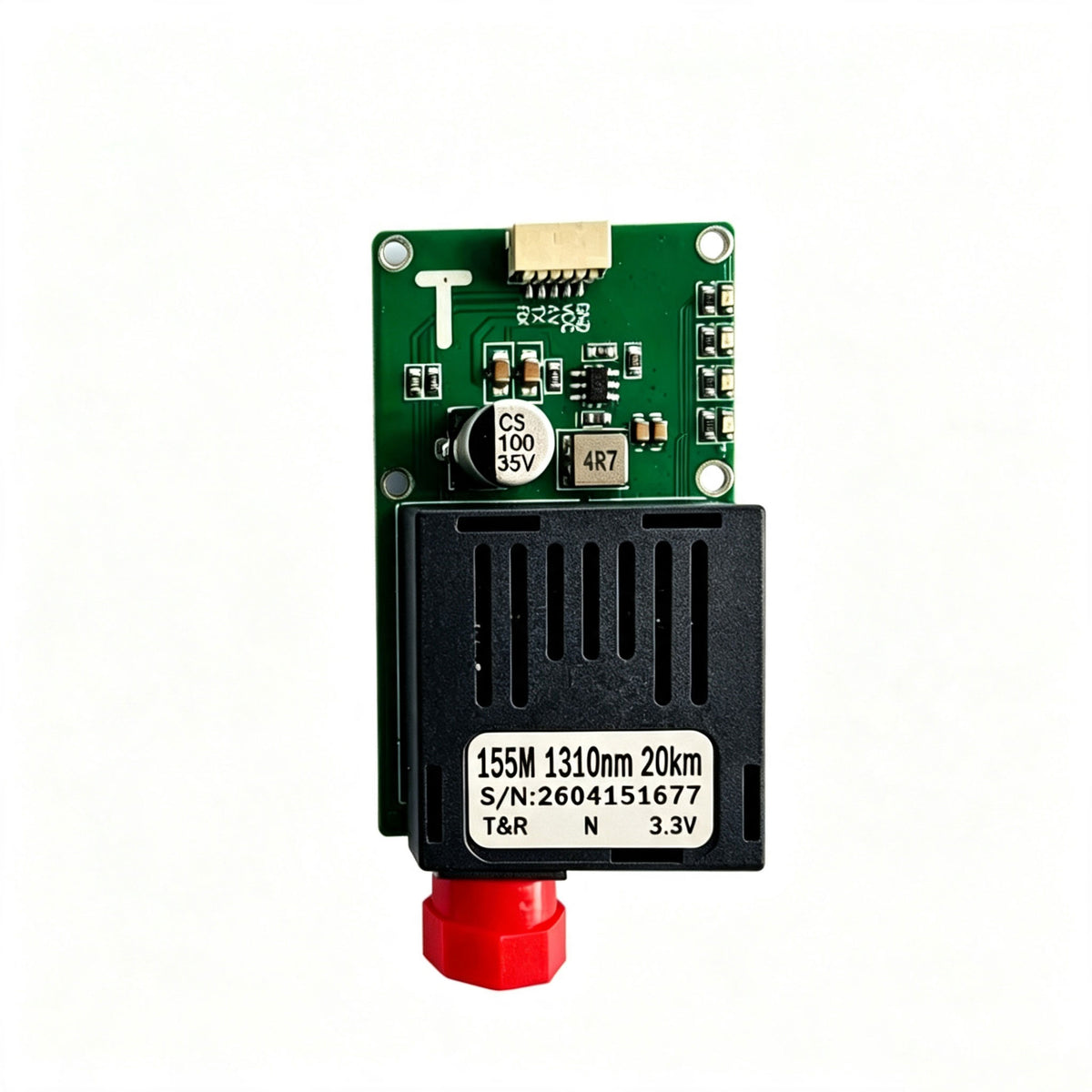

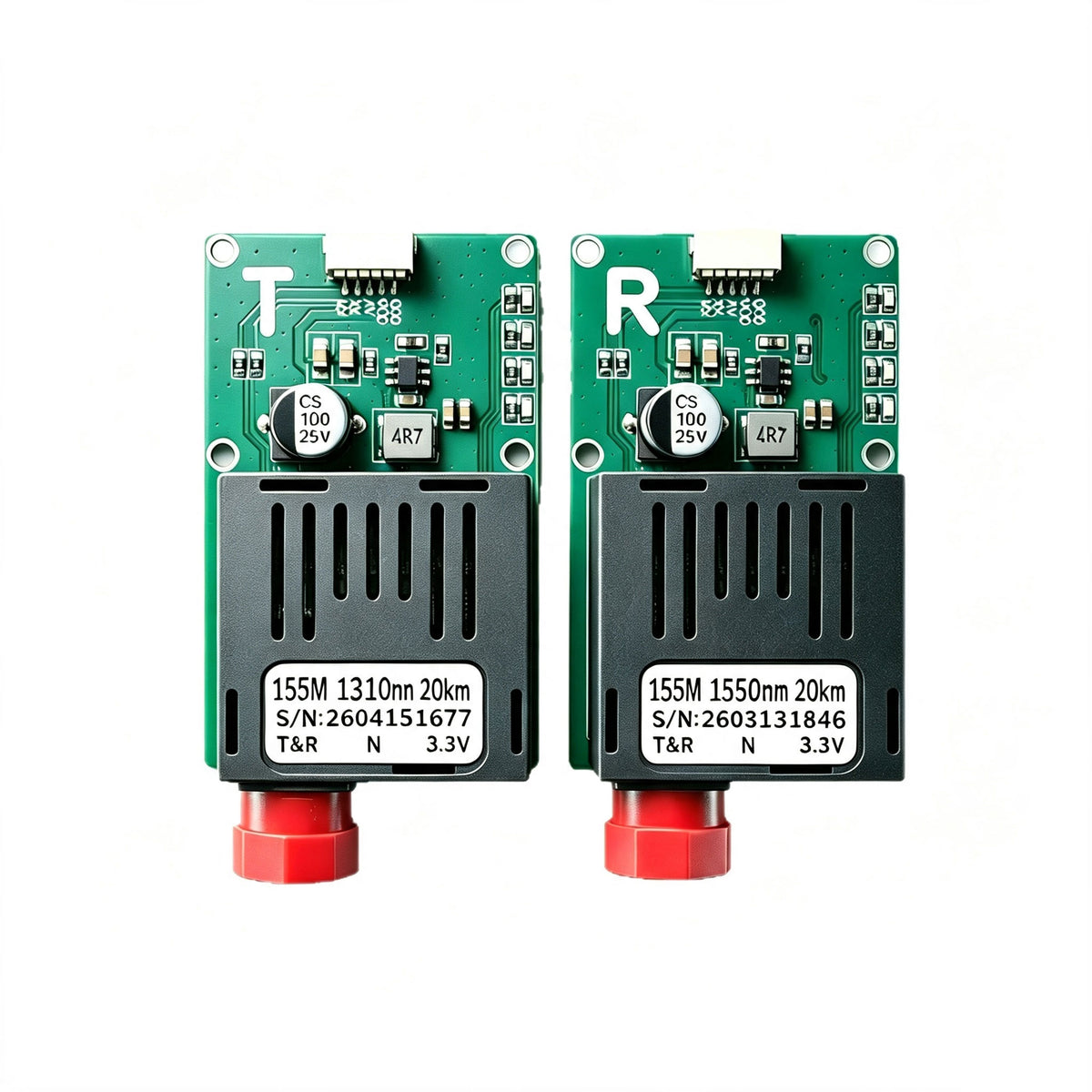

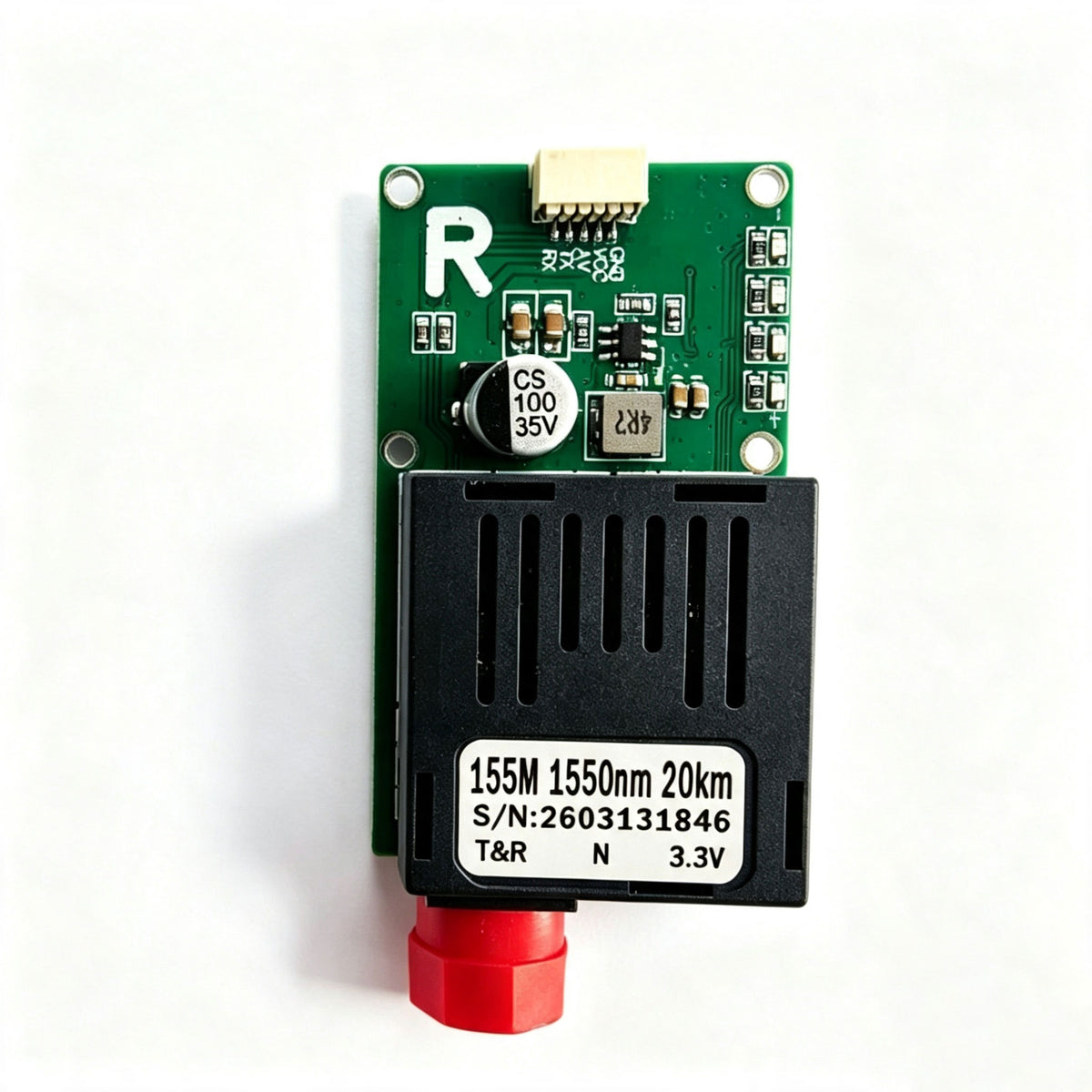

1×9 TTL Single-Fiber BiDi Transceiver Optic Module – 1V 1-Channel, 20-100KM, 2510-A Type (FC/ST/SC Optional)
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Long-Distance Single-Fiber Transmission Made Simple
The 2510-A 1×9 TTL optical transceiver module delivers reliable 1-channel BiDi (single-fiber bidirectional) communication over distances ranging from 20KM to 100KM. Featuring a 1V TTL logic interface and a capacitive T-R board design, this module is engineered for cost-effective, long-haul fiber optic links. Wavelength options include 1310/1550nm (20-60KM) and 1490/1550nm (80-100KM) to match various transmission requirements. The 2510-A variant is specifically compatible with A-type T-R boards and is not interchangeable with B/C types. Available with FC, ST, or SC optical interfaces, this module is ideal for telecom, industrial control, and long-distance data transmission applications.
📌 Customization Service: We support OEM/ODM customization including wavelength, transmission distance, interface type, operating temperature range, and PCB dimensions. Please contact our sales team with your specific requirements.
| Feature | Highlight |
|---|---|
| 1-Channel Single-Fiber BiDi | Single-fiber bidirectional transmission – saves fiber infrastructure costs while delivering high-performance long-haul links. |
| Multiple Distance Options | Available in 20KM, 40KM, 60KM (Standard & Aspheric), 80KM, and 100KM versions to suit diverse deployment needs. |
| Wavelength Configurations | 20-60KM: 1310/1550nm; 80-100KM: 1490/1550nm – optimized for different transmission windows. |
| 1V TTL Logic Interface | Standard TTL interface for easy integration with legacy and industrial-grade communication equipment. |
| Capacitive T-R Board Design | Built with a capacitive transceiver board for stable signal integrity and reliable performance. |
| 2510-A Variant – Compatibility Note | This A-type board is ONLY compatible with other A-type T-R boards. NOT interchangeable with B or C types. |
| Flexible Optical Interface | Available with FC, ST, or SC connectors to fit various fiber patch panel requirements. |
